Savant HDBaseT 4K 100M Extension

Savant

Model #:

HCX-4KHDR100-00

Model #: HCX-4KHDR100-00
1198097
Savant
$99,999.00

At a Glance

Product Dimensions 0.82"h x 7.68"w x 3.73"d

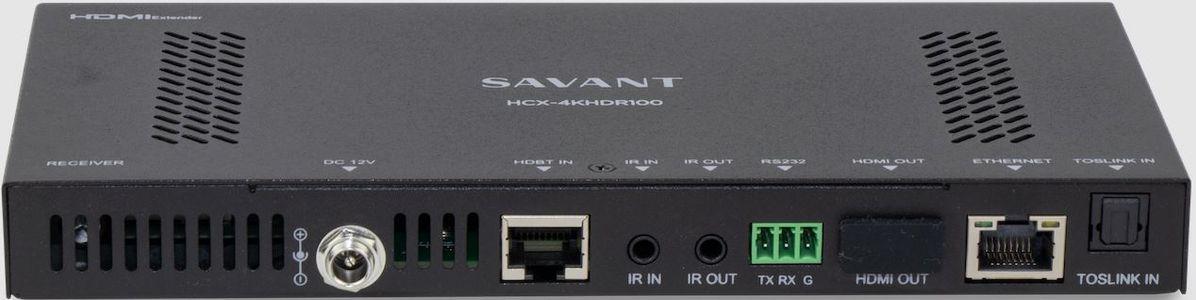

Savant's HDBaseT 4k 100m extension offers full HDMI 2.0 compliance supporting HDR (High Dynamic Range) or 4K@60Hz with 4:4:4 chroma sampling and can transport Ultra HD/4K, multi-channel audio with TOSLINK breakout, and High Dynamic Range (10 bits support) content over a single CATx cable. A low profile slim design makes it ideal for limited space installation, such as behind televisions and projectors.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

Supports resolutions up to 4K@60Hz (4:4:4)

Supports HDR (High Dynamic Range) formats

HDCP 2.2 compliant

High bandwidth support - up to 18 Gbps

Extends HDMI up to 328 ft. (100m) at Ultra HD/4K or 1080p using Cat6a or Cat7

Extends HDMI up to 230 ft. (70m) at Ultra HD/4K and up to 328 ft. (100m) at 1080p using Cat6

Includes TOSLINK audio connections on both ends for return channel audio

Can use HDMI audio from the display to the TOSLINK Out on the Transmitter side

Two channel PCM return HDMI audio from the display can be output on the balanced analog output on the Transmitter

2-Way Power over HDBaseT (PoH). Power adapter can be connected to either Extender

Bi-directional RS232 & IR extension

CEC pass-through

Mounting bracket included

Useful Documents
Quick Reference Guide
Specifications

General Specs

Depth (in.)3.73
Width (in.)7.68
Height (in.)0.82
Outdoor ApprovedNo
Smart CompatibleNo
Wifi CapableNo
Bluetooth CapableNo
HDMI Outputs1
HDMI Inputs1
Color Finish NameBlack
Manufacturer Warranty2 Year
WarningProposition 65 Warning for California Residents
