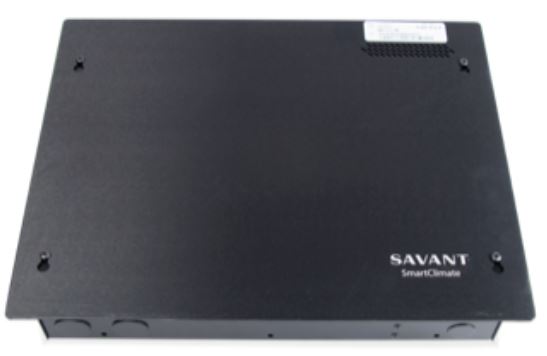

Savant Black Thermostat Processing Unit

Savant

Model #:

CLI-8000-01

Model #: CLI-8000-01
1197257
Savant
$99,999.00

At a Glance

Product Dimensions 12.17"h x 15.48"w x 2.81"d

The CLI-8000 enables control of up to eight standard heat pump or standard HVAC systems from a single enclosure. It is configured using the 6-button keypad display embedded in the inside panel, and supports all standard HVAC controls (on, off, heat, cool, fan) from the Savant Pro App or TrueControl II.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

Includes zone-grouping configuration options for damper control.

Supports standard or heat pump HVAC systems

Optional indoor or outdoor remote temperature sensors

Integrates easily with the HVAC Scheduler on the Savant Pro App and TrueControl

Environmental

Temperature: 32° to 104°F

Humidity: 10% to 90% Relative Humidity (non-condensing)

Power

Power (Input): 24V AC (40VA) from external transformer

Power Draw (Maximum): 12W @ 24V AC

Cable Requirements

Relay Bank to HVAC system: 18 American Wire Gauge (AWG) Standard HVAC wiring (RH, RC, W1, W, Y1, Y2, O, G, Aux)

Cable Requirements (Sensors)

Data Sensor Bus (1-Wire): 24 AWG (Cat 5) 600 feet (182 m) maximum (cumulative)

Remote Sensor: 24 AWG (Cat 5) 500 feet (152 m) maximum

Compliance

Safety and Emissions: FCC Part 15

RoHS Compliant

Additional Info

RS-232: Baud Rate = 19200

Useful Documents
Deployment Guide
Power Transformer
Quick Reference Guide
Specification Sheet
Specifications

General Specs

Depth (in.)2.81
Width (in.)15.48
Height (in.)12.17
Control TypeManual Buttons
Color Finish NameBlack
TouchscreenNo
Product Weight (lbs.)8.75
Smart CompatibleNo
Wifi CapableNo
Manufacturer Warranty2 Year
Bluetooth CapableNo
App CapableNo
WarningProposition 65 Warning for California Residents
