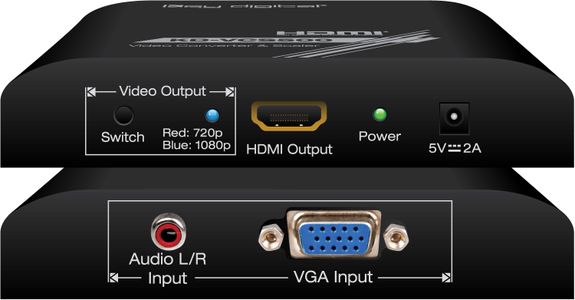

Key Digital® Video Converter & Scaler

Converts

• VGA video and analog audio to digital HDMI video and audio

Embeds

• Incoming analog audio onto the HDMI output

Up-Scales

• VGA Resolutions to 720p or 1080p

Supports the Following VGA Resolutions

• 640x480@60, 800x600@60, 1024x768@60, 1152x864@60Hz, 1280x720@60, 1280x768@60, 1280x800@60, 1280x960@60, 1360x768@60, 1366x768@60, 1280x960@60, 1280x1024@60, 1440x900@60/75, 1600x1050@60, 1680x1050@60, 1600x1200@60, 1920x1080@60, 1920x1200@60

Resolution Selection

• Simple switching between 720p and 1080p up-scaling
• Dual-color LED allows for easy identification of resolution mode

HDMI® and HDCP Licensing

• Fully licensed and compatible with all HDMI and HDCP

General Information

• Inputs: (1) VGA, (1) 3.5mm stereo audio
• Outputs: 1 HDMI
• DDC Signal (Data): 5 Volts p-p (TTL)
• DDC Communication: EDID and HDCP Bi-directional transparency from Display to Source
• Power: 5V 1A external power supply
• Regulation: CE, RoHS, WEEE
• Enclosure: Black plastic
• Product: 4.68” x 2.91” x 0.9”
• Packaging: 7” x 5.3” x 2.6”

Specifications
