Key Digital® Enterprise AV™ Over IP Solutions-KD-IP1080Tx

Model #: KD-IP1080Tx
134859
Key Digital
At a Glance

Key Digital® Enterprise AV™ Over IP Solutions with web control interface and HDMI pass-through

Call for Best Price
$99,999.00Save $NaN

Get to know this product.

Key Digital’s Enterprise AV™ over IP Encoders and Decoders create expandable HDMI over IP systems that can be scaled to fit any commercial installation, and offer variety of Usage Modes:

  • Digital Video Matrix
  • Digital Video Distribution System
  • Digital Video Switcher
  • Digital Video Extender
  • IP Control Expansion

Connectivity

  • Can be connected through a network IP switch or point-to-point

H.264 Compression

  • Ideal standard for large video distribution applications

Low-Bandwidth System

  • Supports managed 100BaseT or Gigabit network switches

Custom System

  • Add Tx and Rx extenders to an existing system to expand HDMI over IP up to 1024 Tx units and unlimited amount of Rx units

Power Over Ethernet

  • Carry power to Tx and Rx units with a Power Over Ethernet enabled Smart Managed Switch

HDMI Pass-through

  • Tx unit support HDMI Pass-through to receive video or extract audio on the transmit side

Alternative Extension Methods

  • Enabled by low-bandwidth data streaming technology
  • Wifi Extender: Up to 100 ft.
  • IP over Coaxial: Up to 1000 ft.

Resolution Support

  • Supports up to 1080p@60 (2.25Gbps) and compatible with DVI1.0/HDMI/HDCP1.x

Audio Format

  • Supports 2ch PCM at 44.1/48kHz

Data Stream Bandwidth

  • < 15Mbps.

Signal Extension

  • Up to 400 ft. @ 1080p@60 (2.25Gbps) using CAT5e/6 UTP/ STP cable

Web Control Interface

  • Reduces installation time and provides basic video setup.

Full Buffer System™

  • Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake

EDID

  • EDID libraries readily available to provide the best setup per source

Deep Color Support

  • Up to 12 bits/color

TMDS Re-Clocking

  • Support for long HDMI runs using Key Digital® HDMI cables

Licensing

  • Fully licensed and compatible with all HDMI and HDCP technologies

Control

  • Key Digital app ready. Compass Control ready. Fully controllable by RS-232 supported control systems via open API.

Source/Display Control

  • Integrate with KD-CX800 to add 3 IR, RS-232 or Trigger ports

Key Digital App ReadyKey Digital® App Ready

  • Can be controlled over TCP/IP via Key Digital® App

Control App Stabilization

  • One KD-CX800 or KD-MC1000 recommended to act as a gateway and increase reliability from KD-App control

System Control

  • Compass Control® Module Ready: The native choice for applications requiring a professional control system
  • Open API: Fully controllable by all RS-232 supported control systems via Key Digital MC gateway
  • Key Digital iOS App: Featuring full switching control, preset builder, and more

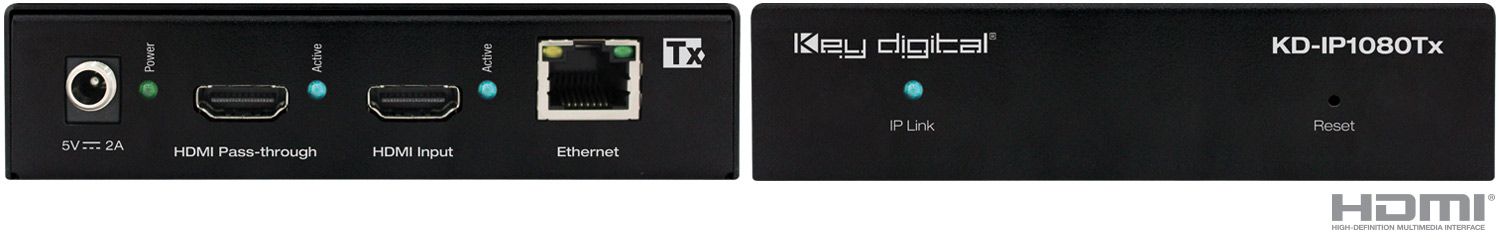

General Info

  • Tx Input: 1 HDMI Connector, Type A, 19 Pin Female
  • Tx Output: 1 HDMI Connector, Type A, 19 Pin Female; 1 CAT5e/6 on RJ45
  • Rx Input: 1 CAT5e/6 on RJ45
  • Tx Output: 1 HDMI Connector, Type A, 19 Pin Female
  • Power: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
  • Regulation: CE, RoHS, WEEE » Enclosure: Black Metal
  • Rack Mount: 2U with KD-RK120PLT bracket (sold separately)
  • Product (Each): 4.74” x 3.11” x 1.16”
  • Packaging: 6.2” x 4.2” x 3.7”
Useful Documents
Specifications

Connections

HDMI Inputs:1
Ethernet Port:1

Misc. Specs

Product Weight0.6
Manufacturer Warranty3 Year
