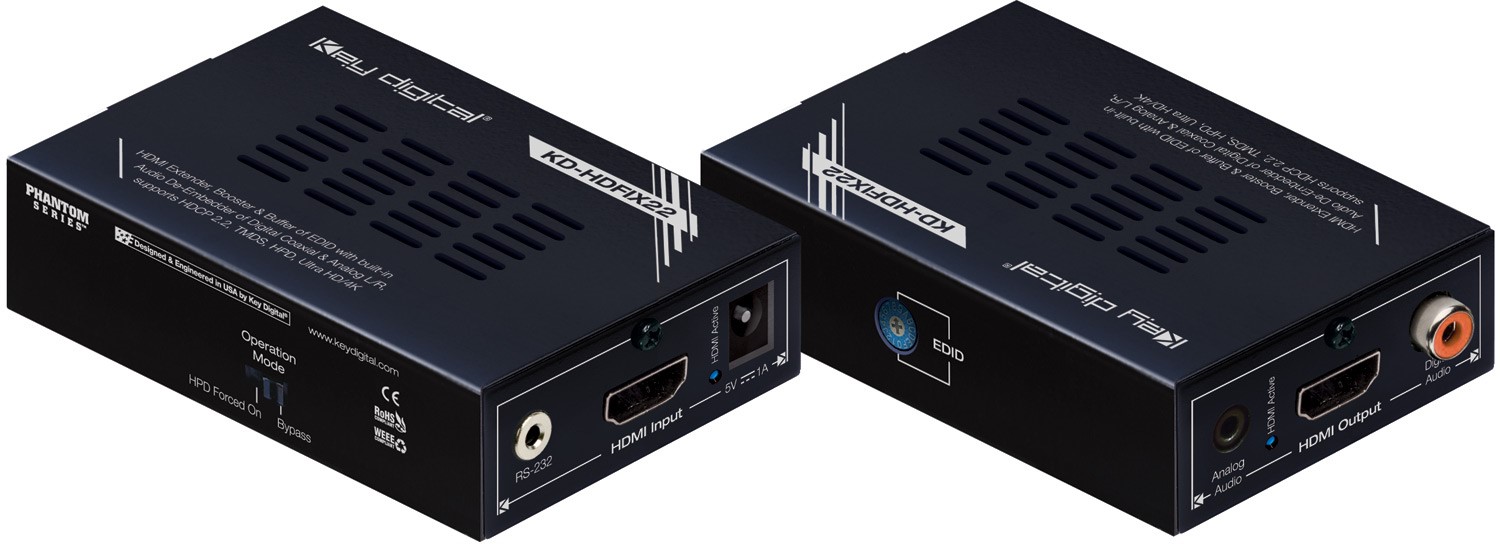

Key Digital® 4K HDMI Extender, Booster & Buffer of EDID

Model #: KD-HDFIX22

At a Glance

Key Digital® 4K HDMI Extender, Booster & Buffer of EDID with audio de-embedding and HDR10

WarningProposition 65 Warning for California Residents
Key Digital® 4K HDMI Extender, Booster & Buffer of EDID

General Specs

Manufacturer Warranty3 Year

Certifications

Warranty3 Year Limited. See store for full details.

Specifications

Screen Resolution4K

Key Digital® 4K HDMI Extender, Booster & Buffer of EDID

Model #: KD-HDFIX22
134930
Model #: KD-HDFIX22
Key Digital
$99,999.00

Call for Best Price

At a Glance

Key Digital® 4K HDMI Extender, Booster & Buffer of EDID with audio de-embedding and HDR10

Get to know this product.

Extension

    Capable of extending UHD/4K and 1080p resolution up to 75 ft. / 23 m. in and 75 ft. / 23 m. out (150 ft. / 46 m. total)

HDMI Correction

    Resolves common HDMI integration obstacles such as HDCP, EDID, HPD, and audio breakout

Resolution Support

    Supports all SD, HD, and VESA resolutions up to Ultra HD/4K, 3D and 1080p/60 (60Hz & 50Hz)

4K/Ultra HD

Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4 or 60Hz at 4:2:0.

HDCP 2.2

    Compliancy up to HDCP 2.2

HDR10 (High Dynamic Range)

    More life-like images through a greater range of luminance levels. For some sources KD-HDFIX22 or KD-DA1x2 is needed to pass HDR10.

3D Ready

    Capability to pass 3D stereoscopic signal formats

Full Buffer System™

    Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake

Audio De-Embedding

    Audio from the HDMI input is de-embedded through the Coax digital (PCM) and/or Analog L/R audio output

Auto-EQ

    Precise signal equalization applied to input and output signals automatically delivers best possible picture quality

EDID Control

    15 internal EDID tables or EDID copy from output/display

Forced HPD

    Enables integrator to choose if active signal voltage is forced to connected input device

Licensing

    Fully licensed and compatible with HDMI up to 4KUHD/60Fps and HDCP 1.0 to HDCP 2.2 technologies.

I2C Communication

    EDID and HDCP transparency from Display to Source

RS-232 Controllable

    Control of unit and connectivity status

CEC Support

    For inter-device control between main input and output HDMI channel

Deep Color Support

    Up to 16 bits/color at 1080p/60

General Information

    Regulation: CE, RoHS, WEEE

    Power: External 5 Volt 2 Amp

    Product: 3.6” x 2.5” x 1”, Weight: 4 oz

    Packaging: 6.3” x 4.2” x 3.3”, Weight: 16 oz

    Enclosure: Black Metal
