Crestron® Yale® Assure Lock™ Wireless Deadbolt-Oil Rubbed Bronze-CLK-YL-YRD226-CR2-OBP

Model #: CLK-YL-YRD226-CR2-OBP
173263
Crestron
At a Glance

Crestron® Yale® Assure Lock™ Wireless Deadbolt-Oil Rubbed Bronze with infiNET EX® and touchscreen keypad

Call for Best Price
$99,999.00Save

Get to know this product.

 Yale® Real Living™ wireless door locks are offered in deadbolt models with pushbutton or touchscreen keypads for a complete locking solution. Featuring infiNET EX® wireless communications, these reliable locks can be locked and unlocked from any touch screen in the system or remotely from a computer or mobile device. When integrated with a Crestron Connected® system, simply unlocking the front door can also turn on the lights, open the window shades, adjust the thermostat, and play your favorite music. Different users can be identified by their unique PIN codes, allowing you to see when a door was locked or unlocked and by whom, and you can even receive a text or email when the kids get home or the cleaning crew has left the house.

A CLK-YL-YRD226-CR2 Yale Assure Lock™ Wireless Deadbolt features an acrylic touchscreen keypad and comes as a complete lockset. It is designed for installation on single-bore (one-hole) doors with a thickness of 1.75 inches to 2.25 inches (45 mm to 58 mm).  Thin door gaskets are available to convert doors of 1.38 inches (35 mm) to proper thickness for installation. The locks are available in three different designer finishes.


Easily lock or unlock the door by entering a 4- to 8-digit PIN code onto the keypad. The lock system supports up to 250 unique user PINs and a Master PIN, which is also used when programming the lock and accessing menu options. In addition, the deadbolt latch can be operated from the outside by a key and by a turnpiece from the inside.

infiNET EX

  • Ultra-reliable infiNET EX wireless technology provides steadfast two-way RF communications throughout a residential or commercial structure without the need for physical control wiring. Employing a 2.4 GHz mesh network topology, each infiNET EX device functions as an expander, passing command signals through to every other infiNET EX device within range (approximately 150 feet or 46 meters indoors), ensuring that every command reaches its intended destination without disruption.
  • Yale Real Living Door Locks communicate with a Crestron control system via an infiNET EX Wireless Gateway (model CEN-GWEXER, DIN-AP3MEX, or MC3). Up to 100 infiNET EX devices may coexist on a single wireless network, and every device that is added to the network effectively increases the range and stability of the entire network by providing multiple redundant signal paths. Built-in Dynamic Frequency Allocation continuously monitors RF conditions, automatically selecting the clearest channel to prevent interference from neighboring networks, cordless phones, and microwaves.

Security & Privacy

  • The lock can be managed through a Crestron touch screen, enabling you to remotely control and view the status of the lock. Accessed from the touch screen, an activity log shows which user PINs were used on a particular door and when. Enhanced scheduling capabilities enable you to schedule specific times in which designated user PINs can unlock a door and repeat the schedule on a daily or weekly basis. Further options include setting pre-programmed triggers that route text and email alerts to mobile devices, such as cell phones, whenever a door is used. The Tamper Alert feature sounds an audible alarm if an attempt is made to forcibly remove the outside lock from the door. Alarms will also sound when a disabled user PIN code is entered and when a valid user PIN code is used outside of its scheduled time frame.

Key Features

  • Stylish deadbolt lock with backlit, touchscreen keypad
  • infiNET EX® wireless communications
  • Illuminates for nighttime visibility
  • Remotely lock and unlock doors using touch screens, remotes, and mobile devices
  • Real-time feedback of door lock status and battery level
  • Event history logs and optional text alerts for each event
  • Easy management of user IDs and preferences
  • Temporary user IDs for guests and service people
  • Alarms for low battery, tampering, and more
  • One year run time on four AA alkaline batteries
  • Compatible with 3-Series® control systems
  • Lighting, shades, HVAC, security, and AV integration

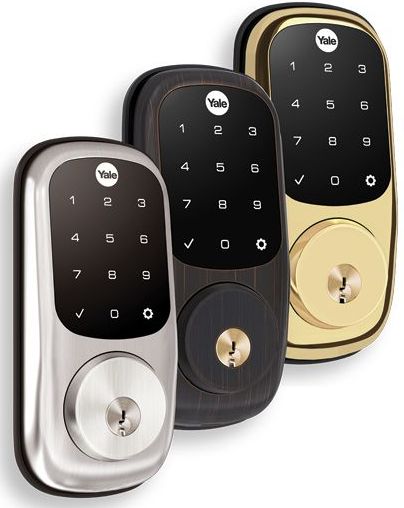

  • Available in polished brass, oil-rubbed bronze, and satin nickel finishes

*Oil Rubbed Bronze Finish Only, Other Finishes Sold Separately. See Store For Details

Useful Documents
Specifications

Features

Battery Type:AA

Misc. Specs

TouchscreenYes
Keyless EntryYes
Temperature Range-22° to 140°F
Operating Temperature Range-22° to 140°F
FinishOil-Rubbed Bronze
Wifi ConnectivityYes
Smart CompatibleYes
Wifi CapableYes
Product Weight5
WarningProposition 65 Warning for California Residents
