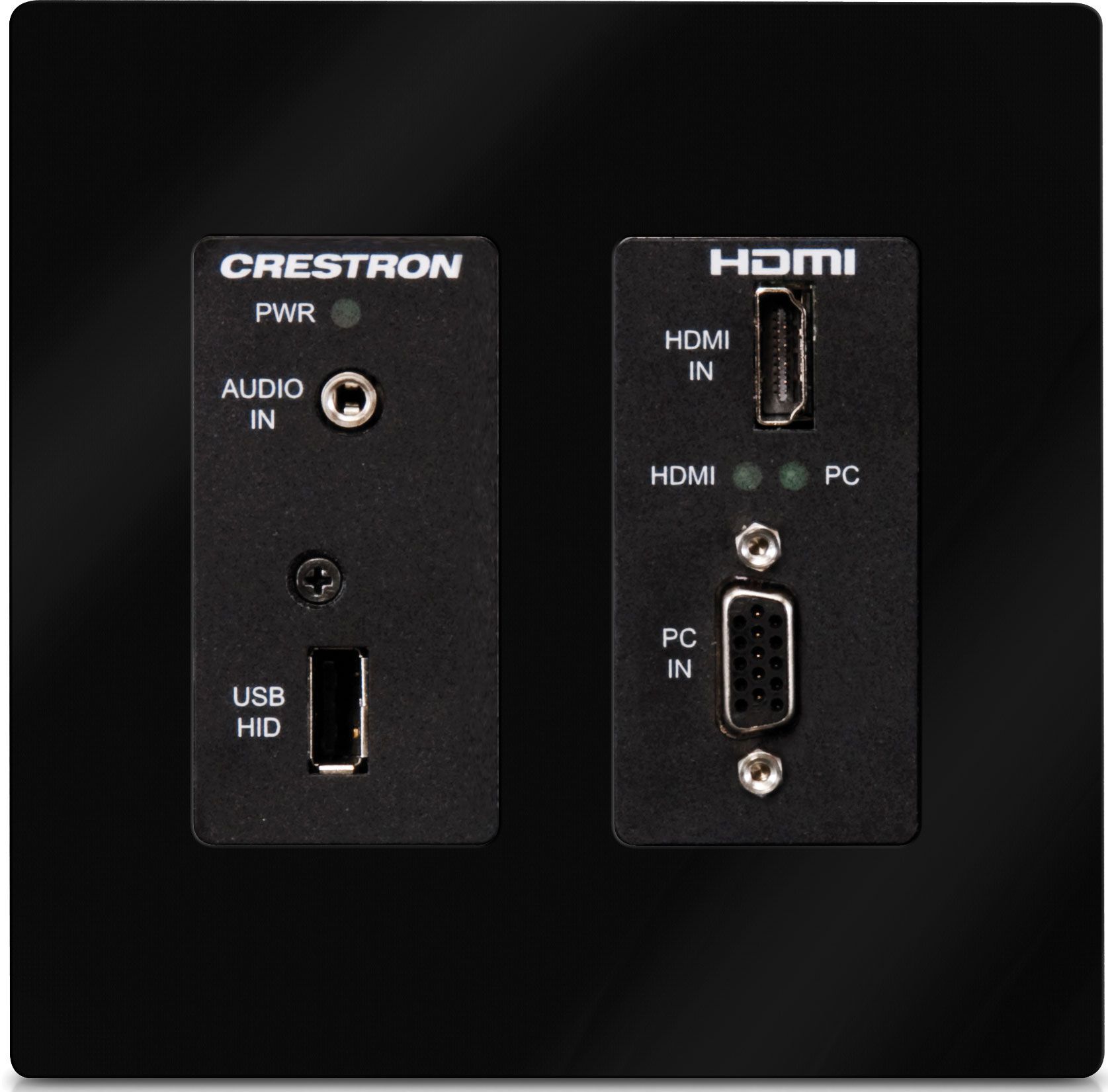

Crestron® Wall Plate DigitalMedia 8G+® Transmitter 200-Black

At a Glance

Crestron® Wall Plate DigitalMedia 8G+® Transmitter 200-Black with USB HID signal extension and simple wall box mounting

Proposition 65 Warning for California Residents

Provides a remote wall plate or floor box input connection for HDMI® and VGA sources as part of a complete DigitalMedia™ System. Connects to the DM 8G+® input of a DM® Switcher or Receiver via DM 8G® Cable or CAT5e. Includes a USB HID device port, allowing a mouse/keyboard to be connected for controlling a computer or other host device at a different location. Mounts in a double-gang electrical box.

The DM-TX-200-C-2G provides an interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia™ system. It is ideal for wall, lectern, and floor box applications in a boardroom, classroom, auditorium, or residence. It functions as a DM 8G+® transmitter and switcher, providing HDMI®, VGA, and analog audio inputs along with a USB HID host port. In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to the input of an HDBaseT certified display device. It connects to the head end or display location using a single CAT type twisted pair cable. Standard gang-box mounting (2-3/4" deep) allows for installation adjacent to an Ethernet jack (Crestron MP-WP183 or equivalent) for a total connectivity solution.

DigitalMedia 8G+®

As the leader in HDMI and control system technologies, Crestron developed DigitalMedia (DM®) to deliver the first complete HD AV distribution system to take HDMI to a higher level. DigitalMedia allows virtually any mix of HDMI and other AV sources to be distributed throughout a home, office, school, or virtually any other facility. The latest generation of DM is called DigitalMedia 8G™ (DM 8G®). Engineered for ultra high-bandwidth and ultimate scalability, DM 8G provides a true one-wire lossless transport for moving high-definition video, audio, Ethernet, and control signals over a choice of twisted pair or fiber optic cable.

DM 8G over twisted pair copper wire is called DigitalMedia 8G+ (DM 8G+). DM 8G+ handles uncompressed Full HD 1080p video signals with support for HDCP, as well as computer signals up to WUXGA. All signals are transported over a single CAT type cable, supporting distances up to 330 feet (100 m) using Crestron DM 8G Cable or CAT5e.

HDBaseT® Certified

Crestron DigitalMedia 8G+ technology is designed using HDBaseT Alliance specifications, ensuring interoperability with other HDBaseT certified products. Via its DM 8G+ output, the DM-TX-200-C-2G can be connected directly to an HDBaseT compliant device without requiring a DM receiver.

Multimedia Computer/AV Interface

HDMI

— Provides a digital multimedia input for mobile devices, computers, and AV sources with resolutions up to HD 1080p60 and WUXGA. Also handles DVI and Dual-Mode DisplayPort signals using an appropriate adapter or interface cable.

PC

— This VGA type input handles analog RGB signals up to WUXGA 1920x1200 pixels, as well as analog video up to 1080p60.[4] A 1/8" (3.5 mm) stereo audio input is included to accommodate the analog audio signal from an unbalanced line-level source or headphone output.

Note: Analog audio breakaway capability enables the analog audio input to be used with either video input.

A single CAT type cable connects the DM-TX-200-C-2G to a DM switcher or receiver, or to an HDBaseT device, transporting video, audio, control, networking, and power signals all through one simple RJ45 connection.[2,5,6] Used with a single DM 8G+ Receiver/Room Controller and optional Crestron control system, the DM-TX-200-C-2G affords a simple solution for extending a computer or AV signal to a single display. As part of a larger system using a DM-MD series switcher, multiple DM-TX-200-C-2Gs may be installed to enable the distribution of several sources at different locations to feed multiple displays throughout any room or larger facility.

USB HID Signal Extension

The DM-TX-200-C-2G functions as a keyboard/mouse extender, allowing a USB HID-compliant keyboard and/or mouse to be connected at the wall plate and used to control a computer or other component located at the central equipment rack or some other location.

CEC Embedded Device Control

DigitalMedia provides an alternative to conventional IR and RS-232 device control by harnessing the CEC (Consumer Electronics Control) signal embedded in HDMI. Through its connection to the control system, the DM-TX-200-C-2G provides a gateway for controlling the connected source device right through the HDMI connection, potentially eliminating the need for any dedicated control wires or IR emitters.

Simple Wall Box Mounting

The DM-TX-200-C-2G is designed to be installed using a 2-3/4" deep 2-gang electrical box or plaster ring (not included). It also fits a 2-gang opening in a typical 6" deep floor box. The DM cable connects to the rear of the transmitter via a shielded RJ45 DM port. The unit can be powered using the wall mount power pack (included), or PoDM (Power over DigitalMedia) for a true one-wire solution.[5,6] An array of indicators is provided for easy setup and troubleshooting.

Please refer to the DigitalMedia Resources Webpage at http://www.crestron.com/dmresources/ for additional design tools and reference documents.

Key Features

DigitalMedia 8G+® transmitter and multimedia interface

Built-in 2x1 AV switcher with auto-switching and analog audio-breakaway

QuickSwitch HD™ technology achieves fast, reliable switching

Connects to a DM® switcher or receiver over a single CAT type twisted pair cable

Supports cable lengths up to 330 ft (100 m) using DM 8G® cable or CAT5e

HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment

Provides HDMI® and RGB/component video inputs

Also supports DVI and Dual-Mode DisplayPort sources

Handles video resolutions up to Full HD 1080p

Handles computer resolutions up to WUXGA

Handles Dolby Digital®, DTS®, and uncompressed 7.1 linear PCM audio

HDCP compliant

Includes a mini-TRS stereo analog audio input

Detects and reports detailed video and audio input information

Performs automatic AV signal format management via EDID

Enables device control via CEC

Enables USB HID signal extension for a local keyboard/mouse

Allows quick, easy setup and diagnostics

2-gang wall box mount design (2-3/4" deep)

Also fits in a typical 6” deep floor box

Available in black or white finish

Powered via the DM connection or local power pack (included)
