Provides a single-wire connection for a TST-600-DS Table Dock.

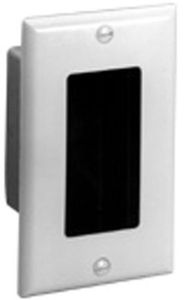

The TST-600-IMCW is the interface module that is included as standard with the TST-600-DS Table Dock (and TST-600 and TST-602 Wireless Touch Screens). It provides a convenient wall or surface mounted connection point for the table dock, and is also available separately as an add-on accessory to provide multiple connection points for a single movable table dock. The table dock connects to the interface module via a 10-pin RJ50 jack.
The TST-600-IMCW interface module provides power to the touch screen via the table dock. Power is supplied to the interface module via the included power pack. As an alternative to using the power pack, the interface module may be connected to a Cresnet® network via the rear panel connector.
In addition to power, the interface module includes a LAN port which may be connected to an Ethernet network to enable wired communication for the touch screen when it is docked on the table dock.
Using the hardware provided, the TST-600-IMCW can be mounted in a standard 1-gang electrical box, or attached to a 19-inch rack-rail or any suitable flat surface. A set of front panel inserts is included to match either white or black decorator style wall plates (wall plates not included).
