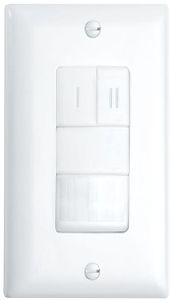

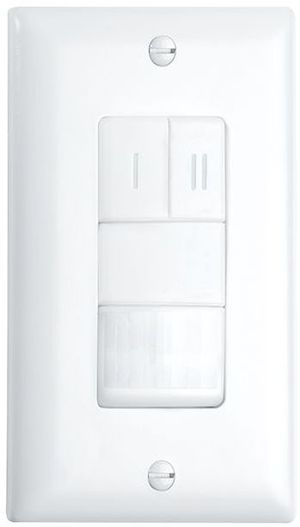

Crestron® STEINEL IR WLS 2 Passive Infrared Dual Relay Wall Switch Occupancy Sensor-White

Model #: GLA-IR-WLS-2-W

At a Glance

Crestron® STEINEL IR WLS 2 Passive Infrared Dual Relay Wall Switch Occupancy Sensor-White with 180 degree coverage pattern and bi-level load switching

WarningProposition 65 Warning for California Residents
Crestron® STEINEL IR WLS 2 Passive Infrared Dual Relay Wall Switch Occupancy Sensor-White

Construction

Mounting TypeSingle-Gang NEMA-Style

Styling

ColorWhite

General Specs

Width (in.)1.74
Depth (in.)1.78
Height (in.)4.13
Voltage120/230/277 VAC, 50/60 Hz

Crestron® STEINEL IR WLS 2 Passive Infrared Dual Relay Wall Switch Occupancy Sensor-White

Model #: GLA-IR-WLS-2-W
170790
Model #: GLA-IR-WLS-2-W
Crestron
$99,999.00

Call for Best Price

At a Glance

Crestron® STEINEL IR WLS 2 Passive Infrared Dual Relay Wall Switch Occupancy Sensor-White with 180 degree coverage pattern and bi-level load switching

Get to know this product.

A line voltage, two relay, Passive Infrared (PIR) wall switch occupancy sensor to control bi-level lighting in commercial spaces. The photocell daylight option keeps the lighting load OFF when the light level is greater than the threshold level setting.

As part of our endeavor to deliver professional lighting and control solutions for the entire enterprise, Crestron is pleased to offer STEINEL PROFESSIONAL products, which are available for sale through authorized Crestron Commercial Lighting system integrators.Based in Germany, STEINEL PROFESSIONAL has been manufacturing lighting controls for over 25 years. Their product offering includes a wide variety of controls and sensors for indoor and outdoor applications.The IR WLS 2 is a line voltage, two relay, Passive Infrared (PIR) wall switch occupancy sensor intended to control bi-level lighting in commercial spaces. PIR is used where the sensor will have a clear view of the occupants in the desired coverage area. The hold off photocell daylight option will keep the lighting load OFF when the light level is greater than the threshold level setting. The convenient “Switch Link” feature enables up to four sensors to link together for pier to pier grouping achieving expanded detection zones and multiway switching.The typical application is for bi-level switching in small office, conference, and break rooms. For best performance use this sensor in enclosed spaces no larger than 18’ x 15’.For additional information and resources, please visit http://www.steinel.net/IR_WLS_2.

Key Features

    PIR (passive infrared) wall switch occupancy sensor

    Bi-level load switching (2 relays)

    Line voltage lighting control (120/230/277 VAC, 50/60 Hz)

    180° coverage pattern

    Manual ON or Automatic ON option

    Light level feature keeps lights OFF when sufficient daylight is present

    Mounts to a single-gang NEMA-style, standard switch box & decorator-style wall plate by others

    “Switch Link” communication allows for up to 4 sensors to be grouped together

    IQ Mode dynamically adjusts the ‘ON’ time delay by learning individual room occupancy

    Walk through mode option will switch the load OFF in 3 minutes if no additional detection occurs after

    the first 30 seconds

    Audible alert feature provides an audible warning that the load will shut-OFF in 10 seconds unless additional motion is detected

    Visible alert feature provides a momentary OFF/ON blink, warning that the load will shut OFF in 10 seconds unless additional motion is detected

    Service mode option deactivates the automated functions of the sensor and the load is only manually controlled using the ON/OFF button

Useful Documents
Specifications

General Specs

Width (in.)1.74
Depth (in.)1.78
Height (in.)4.13
Voltage120/230/277 VAC, 50/60 Hz

Construction

Mounting Type:Single-Gang NEMA-Style

Styling

Color:White
