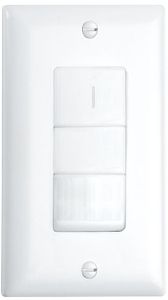

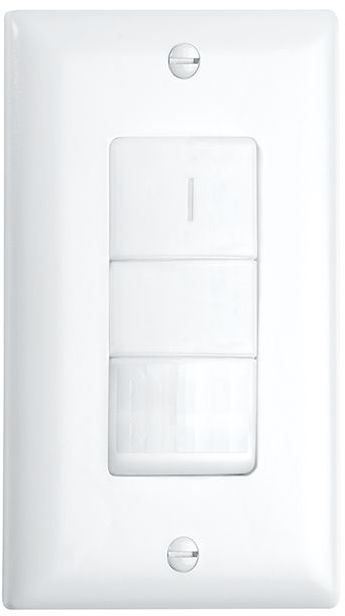

Crestron® STEINEL IR VS 1 Passive Infrared Wall Switch Vacancy Sensor-Light Almond-GLA-IR-VS-1-LA

Model #: GLA-IR-VS-1-LA
170787
Crestron
At a Glance

Crestron® STEINEL IR VS 1 Passive Infrared Wall Switch Vacancy Sensor-Light Almond with Switch Link communication and 180 degree coverage pattern

Call for Best Price
$99,999.00Save

Get to know this product.

A line voltage, single relay, Passive Infrared (PIR) wall switch vacancy sensor to control lighting in commercial spaces.

As part of our endeavor to deliver professional lighting and control solutions for the entire enterprise, Crestron is pleased to offer STEINEL PROFESSIONAL products, which are available for sale through authorized Crestron Commercial Lighting system integrators.

Based in Germany, STEINEL PROFESSIONAL has been manufacturing lighting controls for over 25 years. Their product offering includes a wide variety of controls and sensors for indoor and outdoor applications.

The IR VS 1 is a line voltage, single relay, Passive Infrared (PIR) wall switch vacancy (manual ON) sensor intended to control lighting in commercial spaces. PIR is used where the sensor will have a clear view of the occupants in the desired coverage area. The convenient “Switch Link” feature enables up to four sensors to link together for peer to peer grouping achieving expanded detection zones and multiway switching.

The typical application is for small office, conference, storage closet and break rooms where vacancy control (manual ON only) is desired. For best performance use this sensor in enclosed spaces no larger than 18’ x 15’.

For additional information and resources, please visit http://www.steinel.net/IR_VS_1.

Key Features

  • PIR (passive infrared) wall switch vacancy sensor
  • Line voltage lighting control (120/230/277 VAC, 50/60 Hz)
  • 180° coverage pattern
  • Manual ON automatic OFF
  • Mounts to a single-gang NEMA-style, standard switch box & decorator-style wall plate by others
  • “Switch Link” communication allows for up to 4 sensors to be grouped together
  • IQ Mode dynamically adjusts the ‘ON’ time delay by learning individual room occupancy
  • Walk through mode option will switch the load OFF in 3 minutes if no additional detection occurs after the first 30 seconds
  • Audible alert feature provides an audible warning that the load will shut-OFF in 10 seconds unless additional motion is detected
  • Visible alert feature provides a momentary OFF/ON blink, warning that the load will shut OFF in 10 seconds unless additional motion is detected
  • Service mode option deactivates the automated functions of the sensor and the load is only manually controlled using the ON/OFF button
  • Re-trigger feature allows the load to turn back ON automatically if motion is detected within 30 seconds after it has automatically switched OFF the load
Useful Documents
Specifications

Construction

Mounting Type:Single-Gang NEMA-Style

Styling

Color:Light Almond

Misc. Specs

Product Weight1.0000
Width (in.)1.74
Depth (in.)1.78
Height (in.)4.13
Voltage120/230/277 VAC, 50/60 Hz
