Crestron® STEINEL DT VS 1 Dual Technology Vacancy Sensor

At a Glance

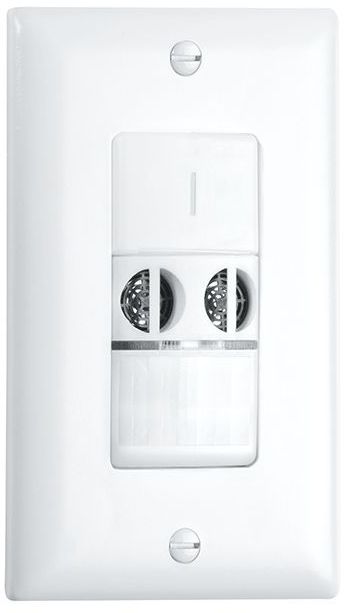

Crestron® STEINEL DT VS 1 Dual Technology Vacancy Sensor with trigger mode settings and 180 degree coverage pattern

Proposition 65 Warning for California Residents

A line voltage, single relay, Dual Technology (PIR & ultrasonic) vacancy sensor to control lighting in commercial spaces.

As part of our endeavor to deliver professional lighting and control solutions for the entire enterprise, Crestron is pleased to offer STEINEL PROFESSIONAL products, which are available for sale through authorized Crestron Commercial Lighting system integrators.Based in Germany, STEINEL PROFESSIONAL has been manufacturing lighting controls for over 25 years. Their product offering includes a wide variety of controls and sensors for indoor and outdoor applications.The DT VS 1 is a line voltage, single relay, Dual Technology (PIR & ultrasonic) vacancy (manual ON) sensor intended to control lighting in commercial spaces. The combination of both technologies enhances occupancy detection in difficult applications. DIP switch adjustable technology options to maintain the load ON with either or both technologies. The convenient “Switch Link” feature enables up to four sensors to link together for peer to peer grouping achieving expanded detection zones and multiway switching.The typical application is for small offices, conference rooms and break rooms where vacancy control (manual ON only) is desired. For best performance use this sensor in enclosed spaces no larger than 20’ x 16’.For additional information and resources, please visit http://www.steinel.net/DT_VS_1.

Key Features

PIR & 40 kHz ultrasonic vacancy sensor

Trigger mode settings enable what sensing technologies are used to keep the load ON

Adjustable ultrasonic reach setting from 25% to 100%

Line voltage lighting control (120/230/277 VAC, 50/60 Hz)

180° coverage pattern

Mounts to a single-gang NEMA-style, standard switch box & decorator-style wall plate by others

“Switch Link” communication allows for up to 4 sensors to be grouped together

IQ Mode dynamically adjusts the ‘ON’ time delay by learning individual room occupancy

Walk through mode option will switch the load OFF in 3 minutes if no additional detection occurs after the first 30 seconds

Audible alert feature provides an audible warning that the load will shut-OFF in 10 seconds unless additional motion is detected

Visible alert feature provides a momentary OFF/ON blink, warning that the load will shut OFF in 10 seconds unless additional motion is detected

Re-trigger feature allows the load to turn back ON automatically if motion is detected within 30 seconds after it has automatically switched off the load
