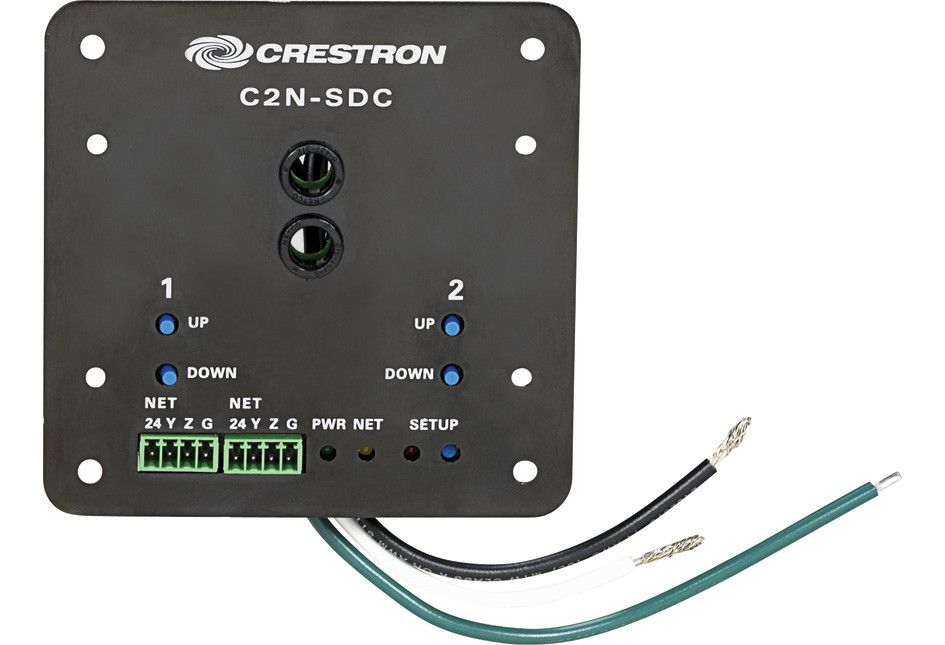

The C2N-SDC is a 2-channel Shade and Drape Controller designed to provide a convenient and cost-effective solution for controlling a variety of motorized window treatments as well as motorized doors, sunroofs, lifts and projection screens. The C2N-SDC is a Cresnet® device with two independently controlled 120V AC outputs. Each output provides up/down or open/close control of a conventional three-wire bidirectional type motor. Built-in timing and interlock logic make it easy to program the C2N-SDC for failsafe operation.
The C2N-SDC mounts in the wall or ceiling using an off-the-shelf 4" square or 2-gang electrical box. Pushbuttons on the front of the unit allow for manual operation of the motors during installation and setup.
General Specs
Depth (in.) | 1.15 |
Height (in.) | 4.1 |
Product Weight (lbs.) | 0.55 |
