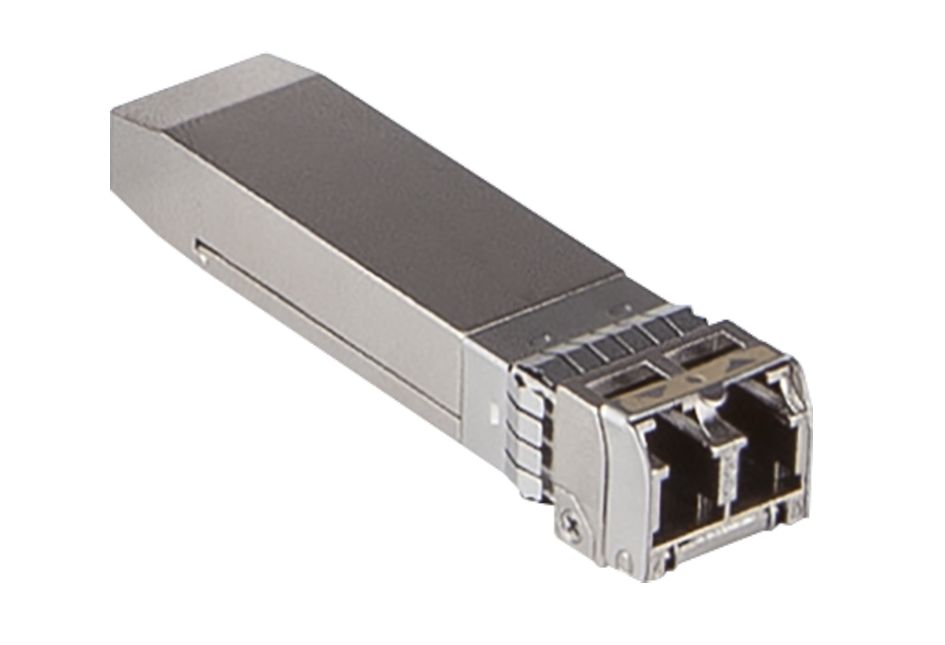

Crestron® SFP+ Transceiver Module

At a Glance

Crestron® SFP+ Transceiver Module for DMF & DMCF series DigitalMedia SFP+ 4K fiber transmitters and receivers

Proposition 65 Warning for California Residents

Replacement SFP+ transceiver modules for use with DMF and DMCF series DigitalMedia SFP+ 4K Fiber transmitters and receivers.Crestron® SFP-10G series SFP+ Transceiver Modules are designed for use with DMF Series DigitalMedia™ SFP+ 4K Fiber Transmitters and Receivers and DMCF Series DigitalMedia SFP+ 4K Fiber Transmitter and Receiver Cards. A choice of modules is offered to support multimode or single-mode fiber types.SFP-10G transceiver modules are normally sold as part of a packaged kit containing one SFP+ transceiver module and one DMF or DMCF device. They are also available individually to allow for replacement in the field. Refer to each DMF and DMCF product spec sheet for additional details.Note: The -U suffix denotes an uplink transceiver and the -D suffix denotes a downlink transceiver. An uplink transceiver is typically installed at the transmitter and a downlink transceiver is installed at the receiver, although the inverse will work as well. However, it is not possible to connect an uplink to another uplink, or a downlink to another downlink.Note: The maximum cable length for single-mode fiber is measured using ITU-T G.652.D fiber optic cable, Crestron model CRESFIBER8G-SM-P or equivalent.

Key Features

For use with Crestron® DMF and DMCF series devices

Supports a choice multimode or single-mode fiber types

Supports cable lengths up to 1300 feet (400 meters) using OM4 MMF

Supports cable lengths up to 6.2 miles (10 km) using G.652.D SMF

Supports retrofit applications with existing CresFiber® 8G in place

Hot-swappable to minimize downtime
