Crestron® RS-232 To USB Keyboard/Mouse Cable-6 Feet

At a Glance

Crestron® RS-232 To USB Keyboard/Mouse Cable-6 Feet with 3-button scroll wheel mouse actions and DB9M to terminal block adapter

Proposition 65 Warning for California Residents

Allows RS-232 serial commands from a control system to produce keystrokes and mouse actions on any computer.

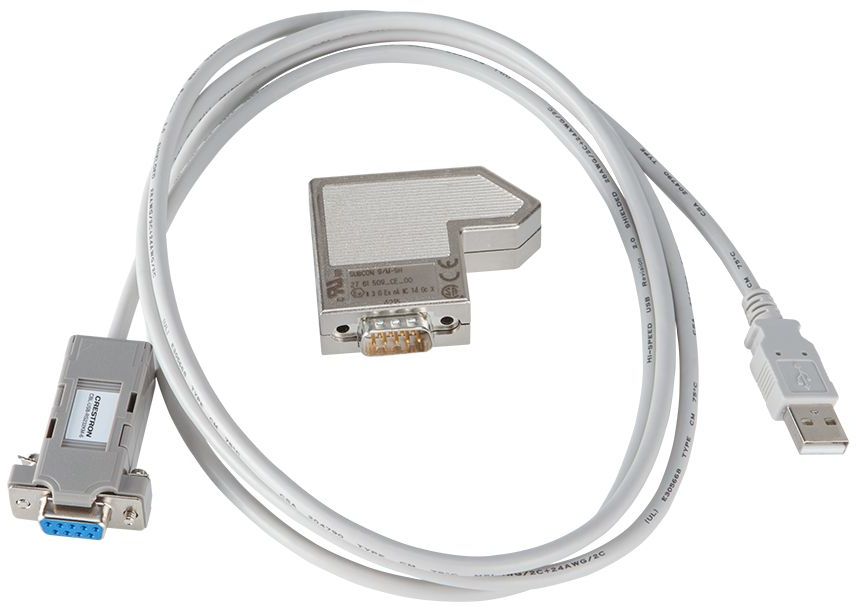

The CBL-USB-RS232KM-6 connects between the RS-232 COM port of a Crestron® 3-Series Control System® and the USB host port of a computer. It allows single byte serial commands from the control system to produce keystrokes and mouse actions on the computer without requiring any special software or driver. Keystroke commands include each key of a typical U.S. 104-key “Windows®” keyboard. Mouse commands include 4-way cursor movement, left/middle/right click, and scroll up/down.The CBL-USB-RS232KM-6 is composed of a 6 foot (1.83 m) long cable with integrated electronics. It features a male USB Type A connector on the computer end and a DB9F connector on the control system end. A DB9M to terminal block adapter is also included. The CBL-USB-RS232KM-6 is powered via the computer’s USB port.

Key Features

Sends USB keyboard and mouse commands to any computer via a control system COM port

No special driver or software required

Supports U.S. 104-key “Windows®” keyboard keystrokes

Supports 3-Button scroll wheel mouse actions

Uses simple single byte RS-232 commands

Includes discrete make and break commands for each keystroke and mouse click

Allows any keystroke combination

Allows polling of Num Lock, Caps Lock, and Scroll Lock status

Works without disabling the computer’s physical keyboard and mouse

Includes 6 ft (1.83 m) DB9F to USB interface cable

Includes DB9M to terminal block adapter

USB powered
