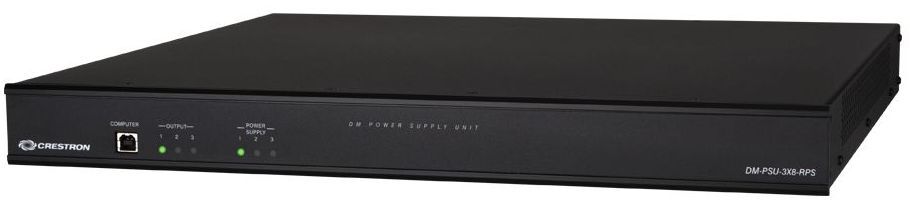

Crestron® PoDM+ Redundant Power Supply


Model #:

DM-PSU-3X8-RPS

Model #: DM-PSU-3X8-RPS
184337
Crestron
$99,999.00

At a Glance

Product Dimensions 1.74"h x 17.28"w x 16.43"d

Crestron® PoDM+ Redundant Power Supply for DM 8G+® I/O Blades and DMPS3-4K-200/300-CRead More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

Enables PoDM and PoDM+ sourcing capability for up to three DMB-4K-I-C or DMB-4K-O-C DM 8G+® I/O blades, or up to three DMPS3-4K-200-C or DMPS3-4K-300-C DigitalMedia™ Presentation Systems.

The DM-PSU-3X8-RPS is an optional accessory for Crestron® 8-Channel DM 8G+® Input and Output Blades (models DMB-4K-I-C & DMB-4K-O-C) and certain 3-Series® 4K DigitalMedia™ Presentation Systems (models DMPS3-4K-200-C & DMPS3-4K-300-C). It is a rack-mountable power supply that enables PoDM (Power over DigitalMedia) and PoDM+ sourcing capability for up to three blades or DMPS3 units.Used with DM 8G+ blades, the DM-PSU-3X8-PWS enables full PoDM and PoDM+ sourcing through all eight DM 8G+ ports on all three blades simultaneously. Used with DMPS3, it enables PoDM and PoDM+ sourcing through every DM 8G+ Input and Output port, and enables PoE sourcing through the Control Subnet port. The DM-PSU-3X8-PWS maximizes efficiency by intelligently and continuously negotiating the power required by each port.To ensure continuous reliable operation for mission critical applications, the DM-PSU-3X8-RPS features a modular hot-swappable redundant power supply design. A total of three power supply modules are employed, and in the unlikely event of an individual module error, the complete unit will continue to operate at full capacity with the remaining two modules working. The failed module can be easily replaced in seconds from the rear panel without shutting down the entire unit or removing it from the equipment rack. Front and rear panel LEDs provide clear indication of any errors. Status can also be monitored remotely through a control system connected to the DM® switcher in which the dependent I/O blades reside. Instant notification of an error can be sent from the control system to a system touch screen, mobile device, email client, or Crestron Fusion® Cloud.The DM-PSU-3X8-RPS ships complete with three hot-swappable power supply modules installed, plus three 8 ft (2.4 m) interconnect cables and three AC line power cables. Optional 20 ft (6.1 m) interconnect cables are available separately.

Key Features

  • Enables PoDM and PoDM+ sourcing for DM 8G+® I/O blades and some DMPS3 systems
  • Supports up to three DMB-4K-I-C and/or DMB-4K-O-C blades
  • Supports up to three DMPS3-4K-200-C and/or DMPS3-4K-200-C systems
  • Enables full PoDM and PoDM+ at all ports on each blade or DMPS3 unit
  • Redundant power supply design ensures continuous reliable operation
  • Hot-swappable power supply modules can be replaced in seconds without shutting down
  • Includes front panel status indicators for easy troubleshooting
  • Allows status monitoring and error notification via the DM® switcher and control system
  • Single-space 19” rack-mountable
  • Includes three 8 ft (2.4 m) interconnect cables and three AC line power cables
  • Optional 20 ft (6.1 m) interconnect cables are available separately
Useful Documents
Specifications

General Specs

Depth (in.)16.43
Width (in.)17.28
Height (in.)1.74
Product Weight (lbs.)22

Styling

Color:Black
