Crestron® onCue® Basic Presentation Controller-US/North America

Model #: BPC-8
At a Glance

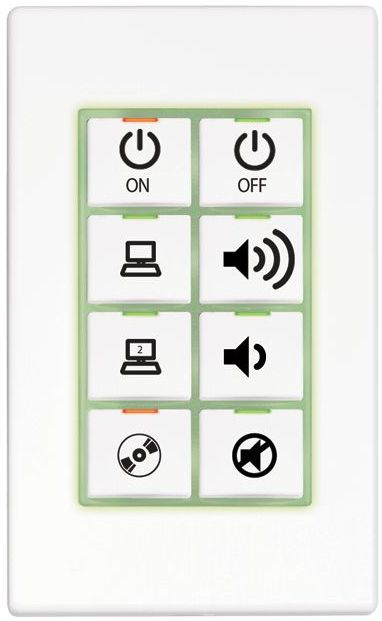

Crestron® onCue® Basic Presentation Controller-US/North America with LED feedback and compact design
Call for Best Price

People also viewed:

Get to know this product.

An extremely simple and cost-effective presentation control solution for K-12 primary education classrooms and small meeting rooms.

Simple, reliable control meets extreme affordability in the onCue® Basic Presentation Controller from Crestron®. Ideal for K-12 primary education classrooms and small meeting rooms, onCue provides a compact wall mount keypad controller (BPC-8) with eight assignable buttons for controlling a single projector, flat screen display, or source device. Crestron onCue can even be configured to control a complete room presentation system equipped with a display device, a motorized screen or lift, and a controllable source such as a DVD player.

Always Ready — Easy to Use

  • Stop searching for lost remotes and constantly replacing batteries just to turn on the projector. Mounted on the wall or in a lectern, onCue is always at the ready, affording straight-forward operation through large, easy-to-read backlit buttons. A selection of pre-labeled buttons provides for control of power, source selection, and volume control, and all eight buttons are interchangeable to suit the application, delivering a customizable control solution that is immediately intuitive to every user. With onCue, every room in your facility can be set up for identical operation, so even if the display equipment varies from room to room, the user experience remains consistent.

Super Simple Installation

  • The onCue BPC-8 controller mounts conveniently in a single-gang electrical box or mud ring. A single 4-conductor cable [1] links the BPC-8 to its companion interface module (BPC-8-IMC included), which may be installed anywhere up to 50 ft away. The tiny module typically installs at the display location, providing connectivity for up to three IR-controlled devices, one RS-232 controlled device, and an AC power pack.
  • The BPC-8 ships with the interface module, power pack, one IR emitter, and a set of 13 interchangeable button caps. Just add the 4-conductor link cable and you've got everything you need to control a typical projector or flat panel display. Additional IR emitters, an RS-232 cable, and an alternate set of buttons for controlling a source device, are also available separately. Custom labeled buttons may also be ordered.

Built-In Library

  • Configuring onCue to control a single display device is a simple two step process. Just find your display in the list provided, and enter its designated code using the BPC-8 keypad. That's it. The buttons come pre-configured out of the box, ready for controlling your display's power, volume, mute, and source select functions.

Easy Learning and More

  • Your onCue system can easily graduate to a higher level of control using the optional onCue software tool and BPC-HPLIR IR Learner & Programmer. With full access to the vast Crestron Database of IR devices, and the ability to learn IR commands from virtually any third-party IR remote, installers can easily assign any command to any button and enable control of multiple devices. The software tool also enables the entry of serial commands to support device control via 1-way RS-232.

Macro Magic

  • Even better, the software tool enables the creation of sophisticated macros, allowing onCue to send multiple commands to multiple devices with a single button press. Using macros, it can be possible to simultaneously select a source, turn on the projector, and lower the projection screen with one button. Or, use one button to "click" through the available sources one-by-one. A single macro can consist of up to 5 separate commands, with the ability to define a time delay or "wait for next button press" between each one.

LED Feedback

  • Each button on the BPC-8 keypad controller includes a red LED to provide users with extra assurance behind every button press. Out of the box, these LEDs illuminate momentarily when the associated button is pressed. Using the software tool, the LED behavior can be customized to support toggle feedback (LED latches on and off with each successive button press), and interlock grouping. Interlock feedback is ideal for use with discrete source selection buttons, and discrete on and off buttons, to indicate the last selected source or power state.

Extra Safeguards

  • Additional capabilities include the options to enable passcode protection and auto-shutdown. Passcode protection prevents unauthorized use of the system by requiring the entry of a preset sequence of four button presses to enable operation. Auto-shutdown turns off the display device if no button is pressed within a preset amount of time, saving energy and preventing the premature failure of expensive projector lamps.

Uploads at the Speed of Light

  • After creating your custom configuration using the onCue software tool, simply use the handheld BPC-HPLIR IR Learner & Programmer to upload the configuration file to the BPC-8. The handheld BPC-HPLIR provides a convenient means for uploading a single configuration to any number of onCue controllers, requiring mere seconds to transfer the file via a simple optical cable. There's no need to remove the BPC-8 from the wall or even remove its faceplate, and one configuration can be used repeatedly for any number of identically equipped rooms, affording incredibly quick and easy setup of each room without any need to carry around a laptop.

Key Features

  • Ultra-affordable control for a single display device
  • Also allows control of source components and other devices
  • Compact design mounts in a single-gang wall box
  • Affords an attractive and professional appearance
  • Features large backlit buttons for easy control in any room
  • Affords super-intuitive operation for any user
  • Includes interchangeable button caps for flexible configuration
  • Allows customizable LED button feedback behavior
  • Supports up to 3 IR and 1 RS-232 devices
  • Includes built-in IR library for simple out-of-the-box setup
  • Allows advanced configuration via easy-to-use software and IR learner/programmer
  • Macros enable sophisticated functionality from a single button press
  • Enables user passcode protection and automatic projector shutdown



Misc. Specs

Product Weight (lbs.)0.1900
Width (in.)3.33
