Crestron® Media Presentation International Version Wall Plate-White with mini-TRS stereo audio and 10.2 Gbps TMDS bandwidth
Connector Type | HDMI; 3.5 mm Mini-TRS |
---|
Mounting Type | Wall |
---|
Color | White |
---|

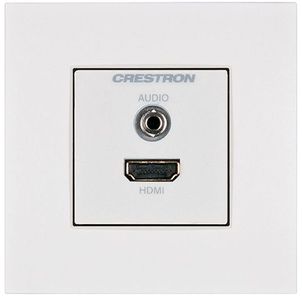

Provides a single-gang Euro/UK wall mount input or output for HDMI digital video and audio, plus analog stereo audio.Media Presentation Wall Plates complete the total Crestron® package, ensuring end-to-end Crestron quality for every installation. A range of wall plates is offered to support all types of analog and digital video, audio, and control signals. The MPI-WP International Version wall plates are designed to fit both European (DIN 49073) and UK (BS 4662) wall boxes [1], and are finished using decorative face plates.[2]The MPI-WP150 features one (1) Type A HDMI connector and one (1) 3.5 mm mini-TRS connector, labeled for HDMI and stereo audio. A bulkhead type feed-through connector is used, which provides a female HDMI connection at the rear of the wall plate to facilitate installation using a standard HDMI cable. Audio wiring is connected via a 3-pin terminal block.The MPI-WP150 supports HD and UHD video signals with resolutions up to 4K60 4:2:0 and 4K30 4:4:4.
Provides gold-plated HDMI® and audio connections
Affords Crestron® guaranteed end-to-end system performance
Supports 4K60 4:2:0 and 4K30 4:4:4 digital video
10.2 Gbps TMDS bandwidth
Supports 7.1 digital surround sound audio
Supports unbalanced stereo analog audio
UK and European electrical box mountable
Gangable for custom wall, lectern, and rack mount applications
Available in white or anthracite
Faceplate sold separately
Connector Type: | HDMI; 3.5 mm Mini-TRS |
Mounting Type: | Wall |
Color: | White |
