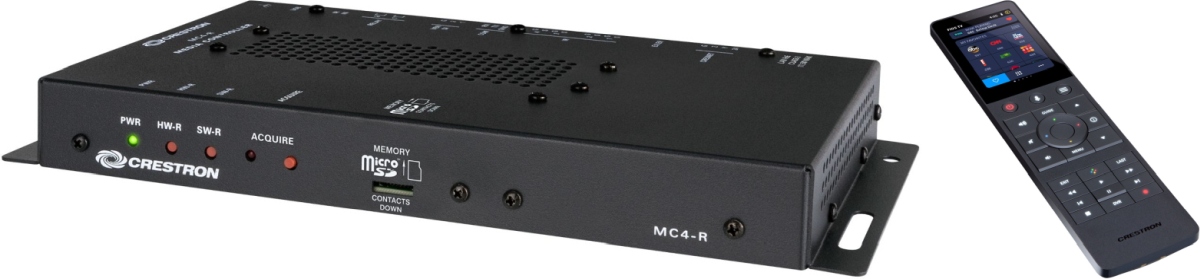

Crestron® MC4-R 4-Series Control System for Crestron Home™ OS with TSR-310

The 4-Series Control System for Crestron Home™ OS (MC4-R) provides a secure, high-performance, cost-effective control system with the embedded Crestron Home operating system. Its small form factor and versatile mounting options makes it ideal for smaller Crestron Home systems such as single-room systems, small to medium-sized homes, and MDUs (multidwelling units). The MC4-R comes equipped with a 4-Series multicore CPU processor that delivers remarkable speed and performance while handling the demands of an advanced automated system.

The Crestron® TSR-310 Handheld Touch Screen Remote is an elegant, customizable wireless controller designed for use in home theaters, bedrooms, hotel rooms, boardrooms, and many other applications. Ruggedized for durability, the TSR-310 offers exceptional comfort and ergonomics for hours of one-handed use. Its backlit buttons provide positive tactile response and clear visibility under all lighting conditions. Its high-resolution 3 in. (76 mm) capacitive touch screen affords completely customizable control over audio, video, lighting, shades, climate, security, and other amenities. Built-in Voice Recognition allows many functions to be executed using spoken commands. Dependable wireless performance is ensured using enhanced Wi-Fi® technology. A space-saving tabletop dock is included for charging the remote.

MC4-R Control System Key Features

• Compact 4-Series control system designed exclusively for Crestron Home™ OS
• 1 GB SDRAM and 8 GB Flash Memory
• 4-Series multicore CPU processor delivers remarkable speed and performance
• Communicates with the Crestron Home Setup App for system configuration and the Crestron Home App for system control
• Ideal for single-room solutions, small to medium-sized homes, and MDUs (multidwelling units)
• Capable of handling systems with hundreds of devices
• Integrates control and monitoring of audio, video, lighting, shades, thermostats, door locks, sensors, and other devices
• Includes built-in IR, COM, I/O, relay, Cresnet® network, and high-speed gigabit Ethernet control ports
• Built-in infiNET EX® wireless network gateway
• Native BACnet™ network/IP support
• Enterprise-class network security
• PoE (Power over Ethernet) powered
• Rack or surface mountable

TSR-310 Handheld Remote Key Features

• Customizable handheld wireless remote
• Elegant, ergonomic, and rugged design
• 3 in. (76 mm) HVGA capacitive color touch screen with Smart Graphics® technology
• Backlit buttons for AV/DVR control and OSM navigation
• 5-way navigation pad changes colors when accessing the four-color buttons mode
• Preprogrammed graphical interface for controlling a Crestron Pyng® OS 2 system
• Voice recognition executes functions using spoken commands
• Fully programmable functionality via a Crestron® control system
• Advanced, high-performance Wi-Fi® wireless communications
• Movement sensor wakes the remote when picked up
• Instant-Waking® technology executes button presses without picking up the remote
• Auto-brightness control maintains optimal visibility
• Setup and diagnostics via touch screen or web browser
• Li-Polymer rechargeable battery
• Space-saving table dock charger
