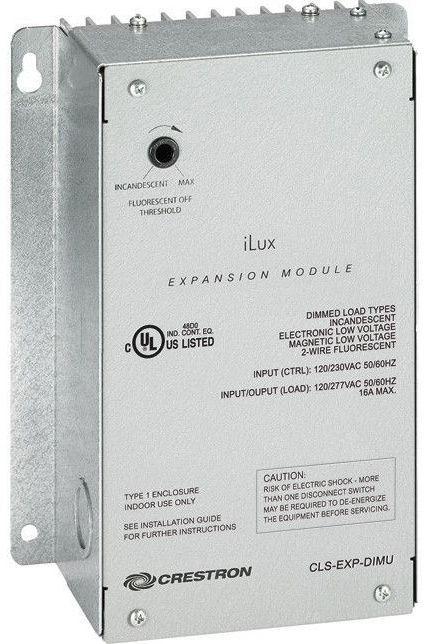

Crestron® iLux® Universal Dimmer Expansion Module-CLS-EXP-DIMU

At a Glance

Crestron® iLux® Universal Dimmer Expansion Module with a threshold adjustment and built-in gap relay

Call for Best Price
$99,999.00Save $NaN

Get to know this product.

The CLS-EXP-DIM enables the expansion of Crestron iLux® Integrated Lighting System (CLS-C6 series) and other Crestron® lighting dimmers to support 120, 230, or 277 Volt loads up to 16 Amps. It allows any output channel of the iLux system to dim a fully loaded circuit of LED, incandescent, magnetic low-voltage, neon/cold cathode, or 2-wire dimmable fluorescent lighting loads. It is also compatible with CLW-Series in-wall dimmers and select CLX-Series lighting control modules.

The CLS-EXP-DIM is designed for mounting to a vertical surface[4], and can be installed in an environmental air-handling space above a suspended ceiling. Conduit knockouts are provided on the bottom and lower sides. All connections are made via screw terminals behind the front cover.

Key Features

  • Works with Crestron iLux®, CLW[2], DIN, and CLX series dimmers
  • Emulates the characteristics of the dimmer that is controlling it
  • Up to 5 Expansion Modules can be connected to a single iLux dimmer channel
  • Supports 120, 230, and 277 Volt LED[1], incandescent, NCC, MLV, and 2-wire dimmable fluorescent loads
  • Includes threshold adjustment for setting minimum fluorescent dimming level
  • Built-in air gap relay at the output
  • Mounts to a wall or above a suspended ceiling
  • CEC Title 24 2013 Compliant


Compatibility:Crestron iLux®, CLW, DIN, and CLX Series Dimmers

Misc. Specs

Product Weight3.3400
Width (in.)6.39
Depth (in.)3.18
Height (in.)8.82
