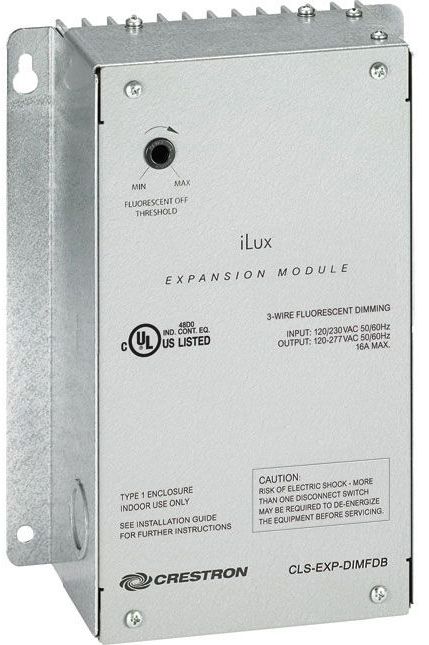

Crestron® iLux® 3-Wire Fluorescent Dimmer Expansion Module


Model #:

CLS-EXP-DIMFDB

Model #: CLS-EXP-DIMFDB
174658
Crestron
$99,999.00

At a Glance

Product Dimensions 8.82"h x 6.39"w x 3.18"d

Crestron® iLux® 3-Wire Fluorescent Dimmer Expansion Module with built-in gap relay and threshold adjustmentRead More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

The CLS-EXP-DIMFDB enables the expansion of Crestron iLux® Integrated Lighting System (CLS-C6 series) and other Crestron® lighting dimmers to allow control of 3-wire electronic fluorescent dimming ballasts. A single model supports 120, 230, or 277 Volt loads up to 16 Amps. Any output channel of the iLux system can be used to control the CLS-EXP-DIMFDB to dim a fully loaded circuit. It is also compatible with CLW-Series in-wall dimmers and select CLX-Series lighting control modules.The CLS-EXP-DIMFDB is designed for mounting to a vertical surface, and can be installed in an environmental air-handling space above a suspended ceiling. Conduit knockouts are provided on the bottom and lower sides. All connections are made via screw terminals behind the front cover.

Key Features

  • Works with Crestron iLux®, CLW, DIN, and CLX series dimmers
  • Emulates the characteristics of the dimmer that is controlling it
  • Up to 5 Expansion Modules can be connected to a single iLux dimmer channel
  • Supports 120, 230, and 277 Volt 3-wire electronic fluorescent dimming
  • Includes threshold adjustment for setting minimum dimming level
  • Built-in air gap relay at the output
  • Mounts to a wall or above a suspended ceiling
  • CEC Title 24 2013 Compliant
Useful Documents
Specifications

General Specs

Product Weight (lbs.)3.34
Width (in.)6.39
Depth (in.)3.18
Height (in.)8.82

Construction

Mounting Type:Surface Mount

Features

Compatibility:Crestron iLux®, CLW, DIN, and CLX Series Dimmers
