Crestron® Heating/Cooling Fan-Coil Thermostat-White

Model #: CHV-TSTAT-FCU-W

At a Glance

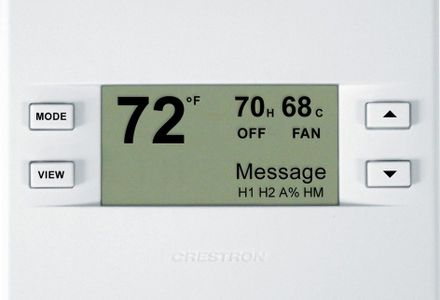

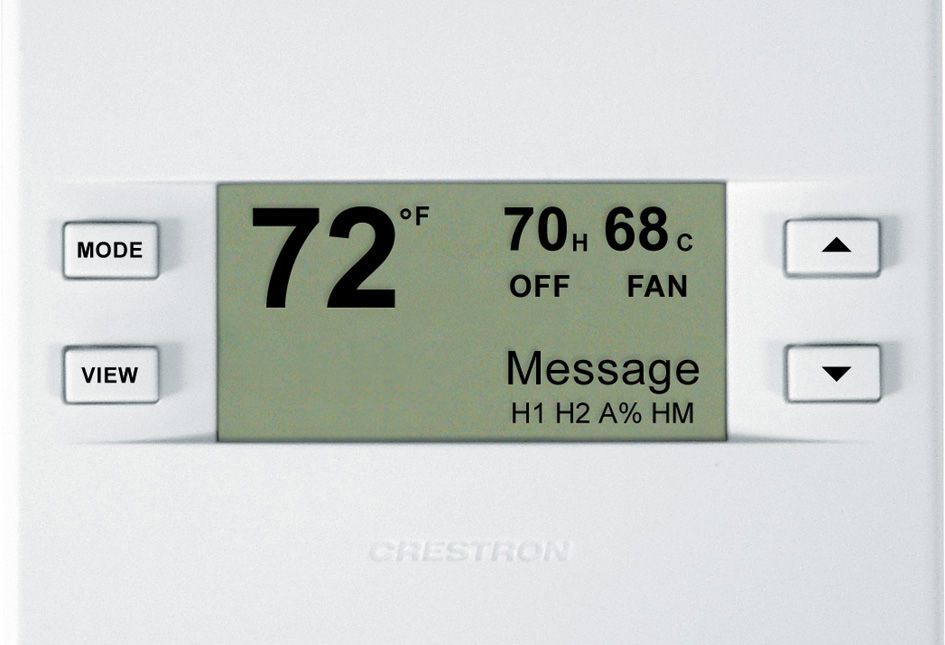

Crestron® Heating/Cooling Fan-Coil Thermostat-White with front panel buttons for setup and backlit LCD display

WarningProposition 65 Warning for California Residents
Crestron® Heating/Cooling Fan-Coil Thermostat-White

Styling

ColorWhite

Features

Backlit DisplayYes
SensorsRemote

Specifications

Display TypeTransflective LCD
Temperature DisplayedYes

General Specs

Depth (in.)1.04
Width (in.)5
Height (in.)3.75
Product Weight (lbs.)0.37

Crestron® Heating/Cooling Fan-Coil Thermostat-White

Model #: CHV-TSTAT-FCU-W
170492
Model #: CHV-TSTAT-FCU-W
Crestron
$99,999.00

Call for Best Price

At a Glance

Crestron® Heating/Cooling Fan-Coil Thermostat-White with front panel buttons for setup and backlit LCD display

Get to know this product.

The CHV-TSTAT is a versatile heating and cooling thermostat for fan-coil unit HVAC systems.

The CHV-TSTAT-FCU is a versatile heating and cooling thermostat for fan coil unit (FCU) HVAC systems. Relative humidity capability can be added through an external remote humidity sensor (sold separately). Although functional as a standalone thermostat, the CHV-TSTAT delivers greatly enhanced functionality as part of a complete home automation system from Crestron®. Available in white, black, or almond, the stylish wall mount design is a complement to any décor.The large backlit LCD display, navigable using four simple pushbuttons, provides easy access to indoor and outdoor temperature and humidity readings, setpoint adjustments, system mode and fan status indicators, and setup menus. Climate control features include separate heating, cooling, and humidity setpoints with optional automatic changeover between heating and cooling modes. Adjustable anticipators prevent overshooting the set temperature, and continuous fan operation can be selected when needed for increased circulation.

Automation System Integration

    Multiple Crestron thermostats may be networked via Cresnet® to any 3-Series® control system, including the DIN-AP3, enabling global temperature and humidity adjustment from any thermostat. Automation functions such as lighting, motorized blinds, or lawn sprinklers can be accessed through two custom remote function pages, and customized text messages can be sent to the LCD display to provide maintenance reminders and other alerts.

    Its connection to the control system also allows for full control and scheduling of the CHV-TSTAT-FCU from touch screens and computers throughout the home, and supports extensive flexibility for integration with other devices and systems. In the event that communication with the control system is disrupted for any reason, the CHV-TSTAT-FCU will remain operable to control the HVAC system.

Remote Sensors

    Optional remote temperature and humidity sensors can be connected to the CHV-TSTAT-FCU for enhanced flexibility and optimized performance. Climate can be regulated according to an average of multiple sensors, or the built-in sensors can be disabled entirely to allow the CHV-TSTAT-FCU to be installed out of view. Outdoor climate can also be monitored, enabling outdoor low-temperature compensation to prevent condensation on windows during cold weather. The CHV-TSTAT-FCU accepts up to four remote temperature sensors, two remote temp/humidity sensors, or a combination of one temp/humidity sensor and two temperature sensors.

Key Features

    Wall-mount thermostat for fan coil unit HVAC systems

    Multiple Crestron® thermostats may be networked via Cresnet®

    Supports remote humidity sensors and outdoor temperature sensors

    Backlit LCD display

    Front panel buttons for setup, configuring, and temperature and humidity adjustments

    Available in white, black, or almond finishes

Specifications

General Specs

Depth (in.)1.04
Width (in.)5
Height (in.)3.75
Product Weight (lbs.)0.37

Features

Backlit Display:Yes
Sensors:Remote

Specifications

Display Type:Transflective LCD
Temperature Displayed:Yes

Styling

Color:White
