Provides a simple and cost-effective high-definition AV presentation solution for classrooms and meeting spaces. It is composed of a transmitter, which installs at a table or podium, and a receiver, which installs at the display. Three auto-switching inputs are provided on the transmitter, and one additional input is provided on the receiver. The transmitter and receiver connect together over a single CATx cable. Built-in scaling ensures a reliable, high-quality image. Fully-automatic operation and web browser setup eliminate the need for a control panel, control system, or programming.
The Crestron® HD-MD-400-C-E delivers an incredibly simple and cost-effective multimedia presentation solution for classrooms and meeting spaces. It allows a laptop or mobile device (HDMI® or VGA) to be connected to one of three inputs at a table or podium, and routes the signal to a display or projector up to 230 feet (70 meters) away. An additional HDMI source can be connected at the display device location (or through an optional wall plate near the display). Fully automatic operation detects when a source is connected or disconnected at any input and turns the display on and off, alleviating the need for any control panels or remotes. Built-in scaling ensures an optimal video image for SD and HD video signals, as well as for high-res computer signals.

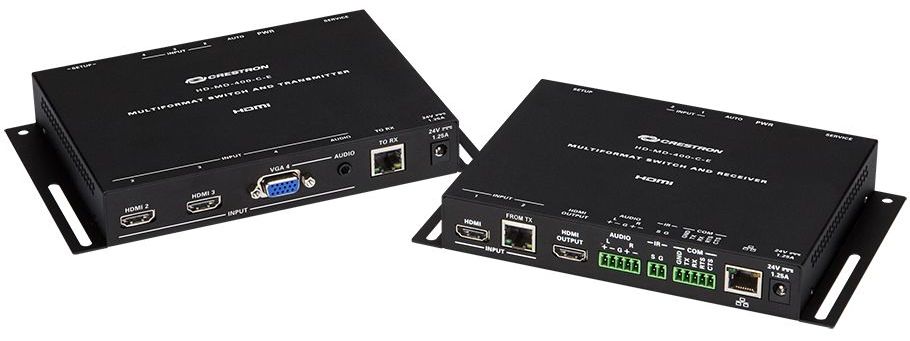

Composed of a compact transmitter and receiver pair, the HD-MD-400-C-E installs in minutes and requires no special programming. The transmitter mounts beneath the table or inside the podium, while the receiver mounts behind the display or above the projector. The only connection required between the transmitter and receiver is a single CAT type twisted pair cable. A LAN port on the receiver allows for connection to an Ethernet network to enable easy setup and configuration via a web browser. Advanced functionality is enabled through integration with a Crestron control system.
Crestron Connect It™
Multimedia Computer/AV Auto-Switcher
HD Signal Extender
EDID Format Management
QuickSwitch HD™ Technology
Embedded Device Control
Enterprise Management Option
Control System Integration
|Connector Type:||HDMI In x 3; VGA In; Aux Audio; HDMI Out|
|Amount Of Lan Ports||1|
