Crestron® Green Light Integrated Lighting System

At a Glance

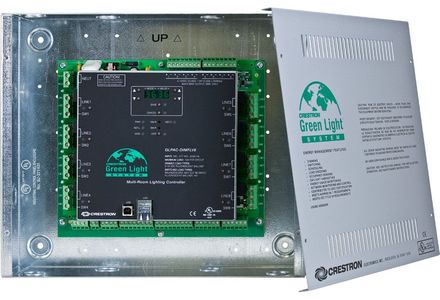

Crestron® Green Light Integrated Lighting System with Chicago Plenum enclosure and 2 isolated 4-channel outputs

Proposition 65 Warning for California Residents

The GLPAC-DIMFLV is a Crestron Green Light® integrated lighting system designed for use as a standalone lighting controller in classrooms, conference rooms, and offices. While able to deliver four or eight channels of 0-10 Volt dimming control, each GLPAC-DIMFLV also provides a link to a centralized Crestron® lighting control system. Add optional real-time power monitoring and Fusion EM® Energy Management Software to help track and minimize energy usage throughout a facility. Cresnet® and Ethernet connectivity afford extensive system configuration when using keypads, touch screens, shade controllers, and more.

Flexibility

Each GLPAC-DIMFLV can be used to control a single room or up to four independent rooms. Single-room control is available right out of the box, with no additional configuration required. Multi-room control and other system adjustments are accomplished using local controls on the GLPAC-DIMFLV or via the built-in web interface. And because the GLPAC-DIMFLV is a Crestron 2-Series control processor, limitless customization is possible for specialized applications.

Astronomical Time Clock Feature

Scheduled events may be programmed on the GLPAC-DIMFLV according to an astronomical time clock. As a result, events can be set to occur at specific times or at an offset from sunrise or sunset.

Save Energy

Built-in support for occupancy sensors and photosensors helps to reduce energy costs. Automatically turn off lights in unoccupied areas and maintain balanced bulb brightness with the natural light level in the room. Crestron GLS Series sensors can be placed strategically in each space to maximize the benefits of energy management.

Emergency Configuration

Each GLPAC-DIMFLV8-4E Series model features built-in voltage barriers that isolate four of its eight output channels. This configuration allows loads such as emergency lighting and exit signs to be supplied from two asynchronous sources.

Built-in Power Monitoring

Optional power monitoring tracks the real time energy usage of each load and delivers energy consumption statistics to the user to help control energy costs. By analyzing real data, organizations can make more educated decisions regarding energy resources, which will have greater impact on the bottom line.

Easy Deployment

Packaged in one metal enclosure, the GLPAC-DIMFLV can be deployed in small spaces, including plenum ceilings. The surface-mount GLPAC-DIMFLV can be affixed to a wall or ceiling rafter, cleanly out of sight. Standard wire-entry knockouts are provided.

For more information on Crestron Green Light commercial lighting products, please contact Crestron Sales Support Services.

Key Features

Up to 8 channels of 0-10 Volt dimming control

Works in 100 to 277 VAC systems

16-Amp load rating per channel

Built-in Control System with Cresnet® and Ethernet port

UL924 compliant emergency configuration in GLPAC-DIMFLV8-4E Series models

Programmable astronomical time clock for scheduled events

Preloaded program for quick setup

Optional real-time power monitoring per channel

Supports keypad control, occupancy sensing, and daylight harvesting for up to 4 rooms

Positive air gap at each output

Phase-independent channels

Local controls for setup, testing and verification

Local and remote override capability

Non-volatile power failure memory

High-speed Ethernet LAN port

CEC Title 24 2013 Compliant
