Crestron® DM NVX® 4K60 4:4:4 HDR Network AV Decoder

Model #: DM-NVX-D30
475236
Crestron
At a Glance

A reliable, high performance AV over IP decoder that receives 4K60 4:4:4 video over standard Gigabit Ethernet with no perceptible latency or loss of quality.

Call for Best Price
$99,999.00Save $NaN

Get to know this product.

A reliable, high performance AV over IP decoder that receives 4K60 4:4:4 video over standard Gigabit Ethernet with no perceptible latency or loss of quality. Supports HDR10 and HDCP 2.2. Provides a secure 4K signal routing solution for enterprise and campus wide content distribution applications.

Crestron® DM NVX® technology transports ultra high-definition 4K60 4:4:4 video over standard Gigabit Ethernet with no perceptible latency or loss of quality. Using standard network switches and CAT5e UTP wiring, a DM NVX system delivers a high-performance virtual matrix routing solution for any enterprise or campus-wide 4K content distribution application. Support for High Dynamic Range (HDR10) and HDCP 2.2 compliance ensures the ultimate in picture quality and compatibility for all of today’s varied media sources.

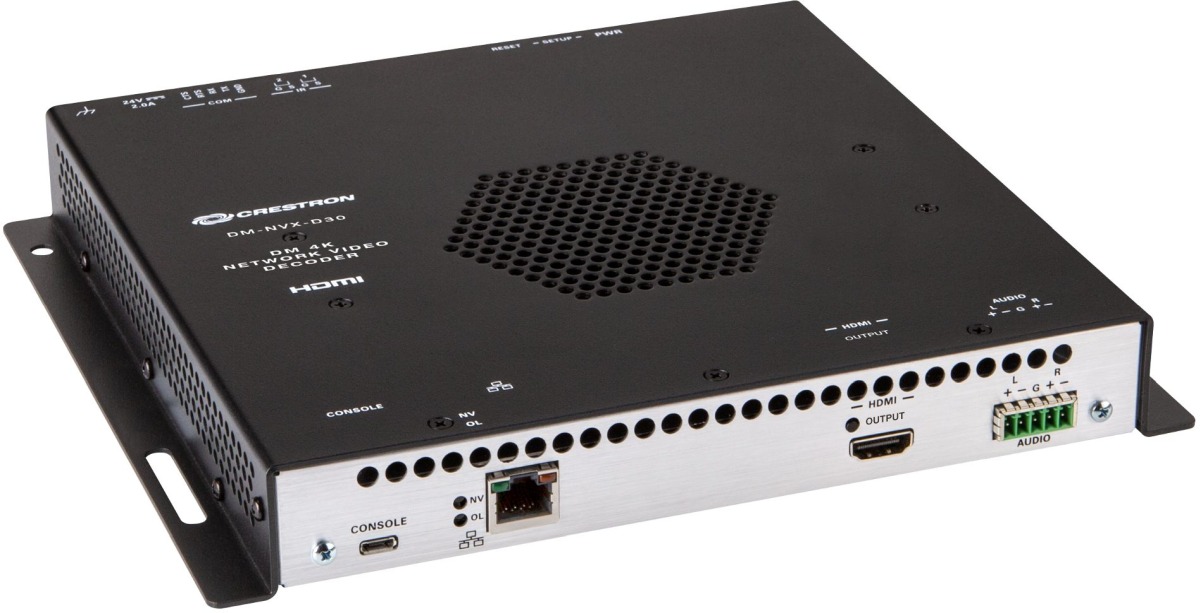

The Crestron® DM-NVX-D30 is a compact AV over IP decoder designed to function as a receiver. Featuring secure web-based control and management, an HDMI® output, an analog audio output, AES67 transmit and receive capability, and copper Ethernet connectivity with PoE+ support, the DM-NVX-D30 offers a low-cost decoder solution for a DM NVX network AV installation of any size.

Real-Time 4K60 Video Distribution

Engineered for demanding conference room and classroom applications, DM NVX technology ensures real-time, full-motion 4K60 video performance for the presentation of multimedia, videoconferencing, and live camera images. Interactive functions such as gameplay and the use of a mouse are fluid and natural.

A DM NVX system is engineered for stability and ultimate reliability. Line-synchronized outputs ensure perfect synchronization of content across multiple displays for applications such as digital signage. Variable Multicast TTL (Time To Live) enables traversing multiple network routers for optimal flexibility.

Pixel Perfect Processing Technology

A DM NVX system incorporates Pixel Perfect Processing technology, which provides flawless video transport in all applications. The DM-NVX-D30 can decode a video signal to achieve imperceptible end-to-end latency of less than 1 frame. The image quality of the source is maintained across a 1-Gigabit network at any resolution up to 4K60 4:4:4.

Enterprise-Grade Security

Using advanced security features and protocols such as 802.1X authentication, Active Directory® credential management, AES-128 content encryption, PKI authentication, TLS, SSH, and HTTPS, a DM NVX system delivers a true enterprise-grade network AV solution engineered to fulfill demanding IT policies.

Decoder Functionality

The DM-NVX-D30 is a basic decoder that receives a signal from a DM NVX encoder and feeds it to a local display device via the HDMI output. The DM-NVX-D30 can quickly and easily switch among multiple encoders on the network. Compatible with DM NVX products that can function as encoders, the DM-NVX-D30 can be used in any DM NVX network AV design.

Analog Audio De-embedding

The analog audio output provides a stereo line-level signal to feed a local sound system or sound bar. The output volume is adjustable via a control system or web browser.

7.1 Surround Sound Audio

DM NVX technology supports the lossless transport of 7.1 surround sound audio signals, including Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed linear PCM.

AES67 Audio Embedding or De-embedding

AES67 support allows the selected audio source to be transmitted as a 2-channel AES67 source while another 2-channel AES67 audio stream is received from a Crestron DSP or other third-party device and combined with the video signal. The received AES67 audio stream can be combined with the video and then output via the HDMI output and analog audio output.

Copper Ethernet Connectivity

The DM-NVX-D30 includes one RJ-45 1000BASE-T Ethernet port. The port is PoE+ compliant, allowing the device to be powered via a PoE+ Ethernet switch.

Device Control

The DM-NVX-D30 includes built-in COM (RS-232) and IR ports for control of display devices under the management of a control system. Additional control capability is provided by CEC (Consumer Electronics Control) over the HDMI connection. Under the management of a control system, the DM-NVX-D30 can control the display device via CEC, potentially eliminating the need for dedicated serial cables or IR emitters.

The COM port, IR port, and CEC over the HDMI output can also enable the display device to be turned on or off automatically without the use of a control system.

Web-Based Setup

Setup of the DM-NVX-D30 is accomplished by using a web browser. Full control and monitoring of the device is enabled through integration with a control system or with a DM NVX Director™ virtual switching appliance.

Streamlined Management Using DM NVX Director Virtual Switching Appliances

For applications that are small to moderate in size, a network of DM NVX endpoints can be configured and controlled with the use of a control system. For larger enterprise and campus-wide signal routing applications, adding a DM NVX Director virtual switching appliance (DM-NVX-DIR-80, DM-NVX-DIR-160, or DM-NVX-DIR-ENT) enhances and streamlines the entire configuration and control process. A DM NVX Director appliance provides a central point of management and enables the creation of multiple virtual matrix switchers through one easy-to-use web-based portal.

Crestron XiO Cloud® Service Support

The DM-NVX-D30 is compatible with the Crestron XiO Cloud service, which is a platform for remotely provisioning, monitoring, and managing Crestron devices across an enterprise or an entire client base. The service enables installers and IT managers to deploy and manage thousands of devices in the amount of time it previously took to manage a single device.

Low-Profile Installation

The DM-NVX-D30 mounts conveniently to a flat surface or rack rail and fits easily behind a flat panel display, above a ceiling-mounted projector, or inside an AV cart or equipment cabinet. All connectors and LED indicators are positioned on the front and rear of the device, offering optimal access and visibility for a clean, serviceable installation. Power is provided via PoE+ or an optional power pack (sold separately).

  • 4K60 4:4:4 video over standard Gigabit Ethernet
  • HDR10 video support
  • Real-time video performance over the network
  • Pixel Perfect Processing technology
  • Enterprise-grade security including 802.1X, Active Directory® credential management, TLS, and AES-128
  • HDCP 2.2 compliant
  • Decoder functionality for use with DM NVX® products that can function as encoders
  • One HDMI® output
  • Analog audio de-embedding
  • 7.1 surround sound audio
  • AES67 audio embedding or de-embedding
  • Copper Ethernet connectivity with PoE+ support
  • Device control via RS-232, IR, and CEC
  • Easy setup via built-in web pages
  • Compatibility with Crestron® 3-Series® or later control systems
  • Streamlined management using DM NVX Director™ virtual switching appliances
  • Crestron XiO Cloud® service support
  • Compact, surface-mountable design
  • Powered via PoE+ or optional power pack (sold separately)
Specifications

Misc. Specs

Depth (in.)1.25
Width (in.)9.27
Height (in.)8.41
Color Finish NameBlack
Manufacturer WarrantyLimited warranty. See store for details.
CollectionDM NVX®
Product Weight (lbs.)1.9
