Classic Stereo and Video
Provides a simple and cost-effective high-definition AV presentation solution for classrooms and meeting spaces. It is composed of a DM Lite surface mount transmitter (HD-TX-101-C-E) and receiver (HD-RX-201-C-E), which connect together over a single CATx cable at up to 230 ft (70 m).
|Color Finish Name||Black|
|Number Of Lan Ports||1|
Provides a simple and cost-effective high-definition AV presentation solution for classrooms and meeting spaces. It is composed of a DM Lite surface mount transmitter (HD-TX-101-C-E) and receiver (HD-RX-201-C-E), which connect together over a single CATx cable at up to 230 ft (70 m). Provides a single HDMI® input at the transmitter, and an additional HDMI input at the receiver. Built-in scaling ensures a reliable, high-quality video image. Fully-automatic operation and web browser setup eliminate the need for a control panel, control system, or programming.
The Crestron® HD-MD-200-C-E delivers an incredibly simple and cost-effective multimedia presentation solution for classrooms and meeting spaces. It allows a laptop or mobile device to be connected to an HDMI® input at a table or podium, and routes the signal to a display or projector up to 230 feet (70 meters) away. An additional HDMI source can be connected at the display device location (or through an optional wall plate near the display). Fully automatic operation detects when a source is connected or disconnected at either input and turns the display on and off, alleviating the need for any control panels or remotes. Built-in scaling ensures an optimal video image for SD and HD video signals, as well as for high-res computer signals.

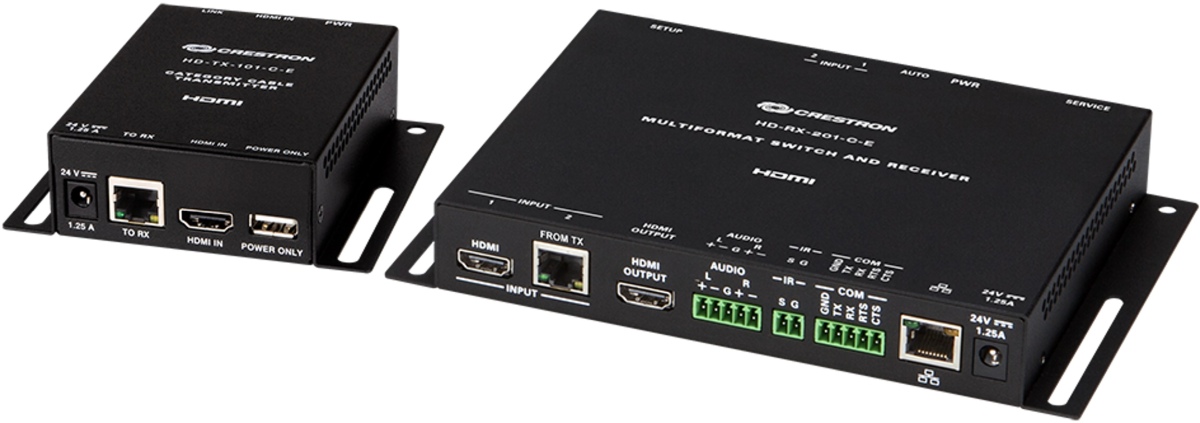

Composed of a compact transmitter and receiver pair (models HD-TX-101-C-E and HD-RX-201-C-E respectively), the HD-MD-200-C-E installs in minutes and requires no special programming. The transmitter mounts beneath the table or inside the podium, while the receiver mounts behind the display or above the projector. The only connection required between the transmitter and receiver is a single CAT type twisted pair cable. A LAN port on the receiver allows for connection to an Ethernet network to enable easy setup and configuration via a web browser. Advanced functionality is enabled through integration with a Crestron control system.
The HD-MD-200-C-E handles high-definition video and computer sources with resolutions up to Full HD 1080p60, 1080i30, or WUXGA 1920x1200. A single HDMI input is provided on the transmitter to support the connection of a computer, mobile device, or other media source. An additional HDMI input is provided on the receiver, which may be wired to an optional wall plate or used to connect a local source such as a mini PC or Crestron AirMedia® wireless presentation system.
The inputs on both components can be configured to switch automatically or be controlled through a Crestron control system. Auto-detection on each input enables plug-and-play simplicity, supporting HDMI, DVI, or Dual-Mode DisplayPort signals via either HDMI input. The auto-switching behavior can be configured using “priority routing” mode, allowing the installer to define which input takes precedence over the other when connecting multiple sources.
A single HDMI output is provided on the receiver to feed the display device. This output can support either HDMI or DVI signal types. A stereo analog audio output is also included to feed an optional sound bar or amplifier.
A USB power port is included on the HD-TX-101-C-E transmitter to enable use of a Crestron Multihead HD Video Cable (model CBL-MULTI-HD-6, sold separately). The Multihead cable provides expanded input connectivity to support the connection of a laptop computer or mobile device with HDMI, DisplayPort, Mini DisplayPort, or USB Type-C™ video output.
A single CAT type cable (sold separately) links the HD-MD-200-C-E transmitter and receiver together. This cable can be up to 230 feet (70 meters) in length, offering an ideal point-to-point signal extender solution for virtually any room with a single table or podium and one display device.
One might assume that any modern display device should support whatever sources you connect to it. In fact, many displays just can’t handle all the different formats and resolutions you’re likely to encounter day-to-day in a dynamic presentation environment. With its built-in professional scaler, the HD-MD-200-C-E enables support for a complete range of digital and analog signals, ensuring that every source displays reliably and beautifully. Automatic calibration is achieved using the display’s EDID — just connect the receiver to the display and it intelligently converts and enhances the signal for optimal appearance on the display screen.
To ensure that every source gets displayed at its optimal resolution and format, the HD-MD-200-C-E provides comprehensive management of the EDID information that passes between the display, scaler, and source devices. Most applications require no changes to the default settings. For applications requiring custom configuration, the HD-MD-200-C-E allows for easy assessment of each device’s format and resolution capabilities, with the ability to configure signals appropriately for the most desirable and predictable behavior.
Handling digital media signals means handling HDCP (High-bandwidth Digital Content Protection), the encryption scheme used by content providers to protect their DVDs, Blu-ray™ discs, and broadcast signals against unauthorized copying. Viewing HDCP encrypted content requires a source device to “authenticate” each display and signal processor in the system and issue it a “key” before delivering an output signal. Crestron QuickSwitch HD manages these keys to ensure fast, reliable switching and immunity to “blackouts.”
Its analog audio output allows the HD-MD-200-C-E to extract the stereo audio signal from digital sources to feed a sound bar, amplified speakers, or a separate sound system.
To deliver fully automatic operation of the complete system, the HD-MD-200-C-E can turn the display device on and off via its HDMI connection using CEC (Consumer Electronics Control) commands, or via the built-in IR or RS-232 port. For advanced applications using a Crestron control system, all of the HDMI, IR, and RS-232 ports on the HD-MD-200-C-E can be utilized to attain fully-programmable control of the display, sources, and other devices in the room.
Fully programmable functionality can be enabled through integration with a Crestron control system. Integration with a control system also enables centralized monitoring using the Crestron Fusion® Enterprise Management Service.
The transmitter and receiver components (models HD-TX-101-C-E and HD-RX-201-C-E respectively) are each designed to be mounted to a flat surface or placed on a shelf. Each component is compact enough to fit discreetly inside a presentation lectern, beneath a table, on a wall behind a flat-panel display, or on the ceiling above a projector. They can even be attached to a single rack rail in the back of an equipment cabinet. Both components are powered together using a single wall mount power pack (included), which may be connected either at the receiver or at the transmitter location. Power is carried between the transmitter and receiver over the DM Lite link connection.
Simplified setup, configuration, and basic operation is provided through a web browser user interface. Essential controls and status indicators are also provided on each unit for easy testing and troubleshooting without a computer during installation.
1+1 high-definition digital AV switcher, scaler, and extender
Fully-automatic operation — no control system, control panel, or programming required!
Easy web browser setup
Supports integration with a Crestron® control system for fully programmable functionality
Includes a compact, surface-mountable transmitter and receiver
Transmitter includes a single HDMI® input
Compatible with the Crestron Multihead HD Video Cable (CBL-MULTI-HD-6, sold separately)
USB power port supplies power for the Multihead cable and other USB powered devices
Receiver includes one HDMI input, one HDMI output, and one analog audio output
A single CATx cable links the transmitter to the receiver
Supports cable lengths up to 230 feet (70 meters) between the transmitter and receiver
Automatically scales input signals to match the native resolution of the room display
Supports a range of display resolutions up to Full HD 1080p and WUXGA
Supports any input resolution up to Full HD 1080p and WUXGA
Performs deinterlacing of NTSC, PAL, and 1080i sources
Handles Dolby Digital® 5.1, DTS® 5.1, and uncompressed 7.1 linear PCM audio
Supports stereo audio de-embedding via the analog audio output
Provides up to 150 ms lip-sync delay at the analog output
QuickSwitch HD™ technology manages HDCP keys for fast, reliable switching
Includes comprehensive built-in EDID configuration tools
Provides a 10/100 Ethernet LAN connection
Enables device control via CEC, IR, or RS-232
Compact, low-profile surface mount design
Universal 100-240V external power pack included
