Crestron® DIN Rail Versiport Module-DIN-IO8

Model #: DIN-IO8
165907
Crestron
At a Glance

Crestron® DIN Rail Versiport Module with 3rd-party sensors and 8 versiport I/O ports

Call for Best Price
$99,999.00Save

Get to know this product.

  • 8 Versiport I/O ports
  • Interface for 3rd-party sensors, detectors, contact closures, and alarms
  • Fully programmable functionality via DIN-AP2

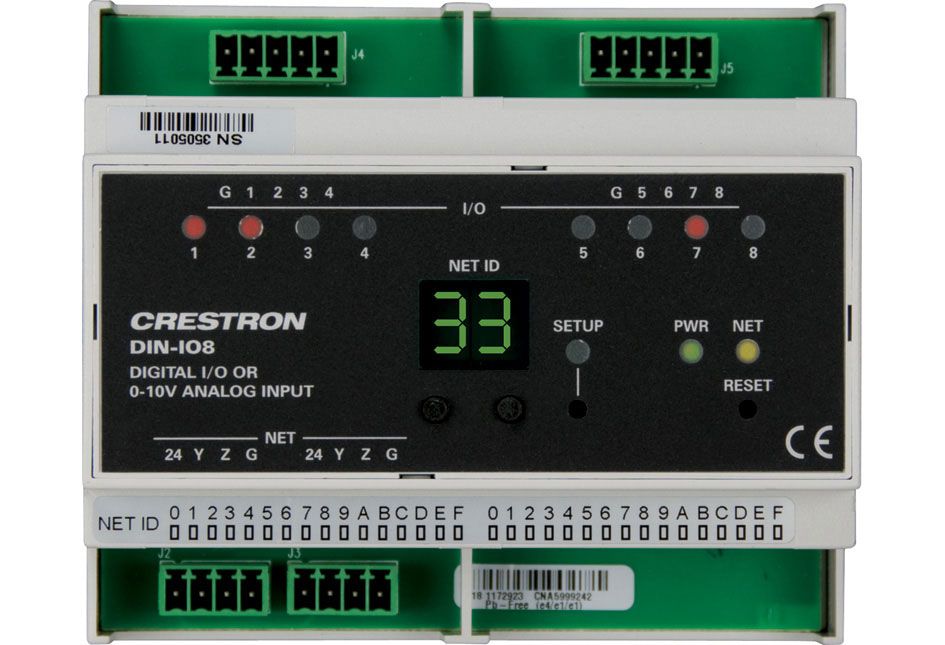

The DIN-IO8 is a DIN rail-mounted automation control module that provides eight Versiport I/O ports for interfacing with a wide range of third-party devices and systems. Each "Versiport" can be configured via software to function as a digital or analog sensing input, or as a digital trigger output.

Versiports

  • Configured as a digital input, the Versiport will sense a contact closure or logic level signal from devices such as motion detectors, partition sensors, alarm panels, 12V triggers, and all types of switches and relays. As an analog input, the Versiport can sense changes in a resistance or DC voltage level, working with everything from temperature and light sensors to water level meters to volume control potentiometers. As a digital output, the Versiport provides a logic level closure signal to trigger control and alarm inputs on a variety of external devices.

DIN Rail Installation

  • The DIN-IO8 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure or mounted on a wall panel. Wiring connections are made using detachable screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-IO8's front panel stays accessible while the connections are concealed.

Cresnet®

  • The DIN-IO8 communicates with a DIN-AP2 2-Series Automation Processor, or other Crestron 2-Series control system, via the Cresnet control network. Cresnet also powers the DIN-IO8. A pair of Cresnet ports is provided on the DIN-IO8 allowing for easy daisy-chaining of several DIN Rail Series automation control modules.

Key Features

  • 8 Versiport I/O ports
  • Interface for 3rd-party sensors, detectors, contact closures, and alarms
  • Fully programmable functionality via DIN-AP2
  • Cresnet communications
  • 6M wide DIN rail mounting
Specifications

Misc. Specs

Depth (in.)2.35
Width (in.)4.18
Height (in.)3.71
Product Weight0.3600
