Crestron® DigitalMedia™ Ultra Midspan PoDM++ Injector

At a Glance

Crestron® DigitalMedia™ Ultra Midspan PoDM++ Injector with bidirectional power and HDBaseT® compatibility

Proposition 65 Warning for California Residents

Enables powering of one or two PoDM-powered DM 8G+ devices. Supports PoDM+ and PoDM++ powered devices. Installs in line or connects via a DM switcher I/O card.

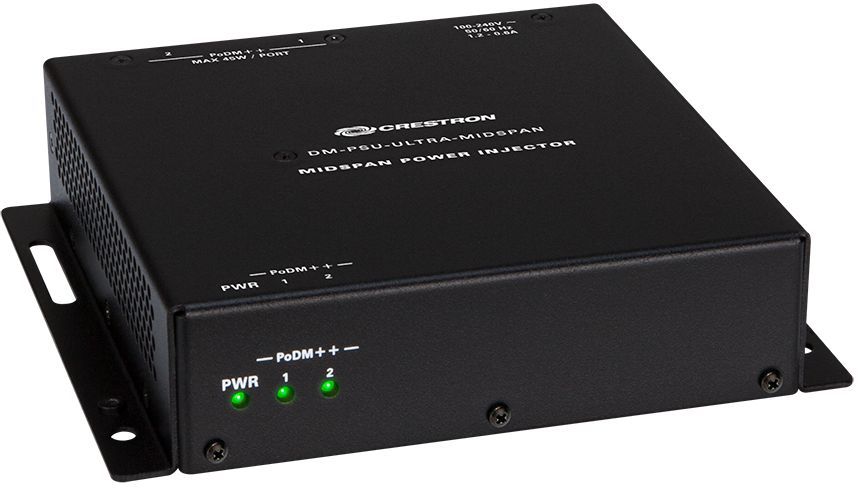

The Crestron® DM-PSU-ULTRA-MIDSPAN provides a single-point, midspan power injector for one or two PoDM-powered DM 8G+® devices. Its ability to deliver power in two directions without impacting the video or data signals passing through is unique in the industry. Its high-output power capacity of 45 Watts per port enables support for PoDM+ and PoDM++ powered devices including the Crestron TS-1542-C touch screen.

Bidirectional Power

The DM-PSU-ULTRA-MIDSPAN installs in line between two DM 8G+ devices and provides power to either or both of those devices. This allows a DM 8G+ transmitter and receiver, such as the DM-TX-4K-302-C and DM-RMC-4K-SCALER-C-DSP, to be paired together to form a custom point-to-point 4K signal extender, all powered from a single midspan power source. The use of a midspan power source with bidirectional powering capability eliminates the need for separate power supplies or electrical outlets at either endpoint.

2-Port PoDM++ Power Supply

For larger systems utilizing a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher, the DM-PSU-ULTRA-MIDSPAN can be used to supply PoDM++ power to two DM 8G+ devices via their connections to the switcher. Instead of installing in line, each port on the DM-PSU-ULTRA-MIDSPAN can be connected to the POE IN port of a DMC-4K-C input card, DMC-4K-C-DSP input card, or DMC-4K-CO-HD output card. Doing so enables the powering of two separate devices, whether transmitters, receivers, or touch screens, through the DM port on each card. A maximum of 45 Watts is available at each port.

HDBaseT® Compatible

The DM-PSU-ULTRA-MIDSPAN is compatible with HDBaseT® Alliance specifications and may be used to supply power to IEEE 802.3at compliant HDBaseT PoE+ powered devices.

Mounting Options

The DM-PSU-ULTRA-MIDSPAN features integral mounting flanges to allow for surface mounting under a table, or attachment to a single rack rail. One or two units may also be installed in a single rack space using the optional rack mount kit (model ST-RMK, sold separately).

Key Features

Powers one or two PoDM-powered DM 8G+® devices

Supports PoDM+ and PoDM++ powered devices

Simultaneously supplies up to 45 Watts from each port

Inserts midspan and supplies power to both endpoints

Preserves the integrity of 4K video and 10 GB data signals

Maintains full 300 ft (100 m) cable length end-to-end

Also functions as a 2-port PoDM++ power supply for DMC I/O cards

Compatible with HDBaseT® PoE+ powered devices

Includes status indicators for basic troubleshooting

No configuration or programming required

Surface or under-table mountable

Attachable to a single rack rail

1 RU rack mount kit option sold separately
