Provides a remote input connection for HDMI®, VGA, and video sources as part of a complete DigitalMedia™ System. Connects to the DM 8G® Single-Mode Fiber input of a DM® Switcher or Receiver via one single-mode fiber strand. Includes a USB HID device port, allowing the connected host device to be controlled by a keyboard and mouse at a different location.

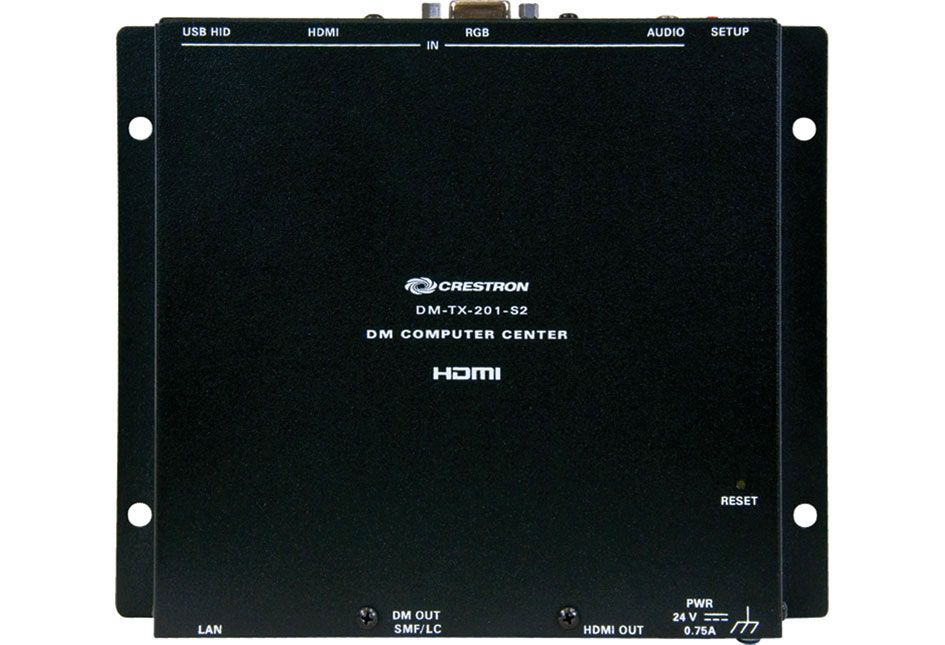

The DM-TX-201-S provides a simple interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia™ system. Its low-profile, surface-mountable design makes it ideal for installation beneath a conference table, inside a lectern or equipment rack, or at virtually any other location in a boardroom, classroom, auditorium, or residence. It functions as a DM 8G® SM Fiber transmitter and switcher, providing HDMI®, VGA, and analog audio inputs along with Ethernet and USB HID ports for a total connectivity solution. It connects to the head end or display location using one single-mode fiber strand.
DigitalMedia 8G™ Single-Mode Fiber
Multimedia Computer/AV Interface
The DM-TX-201-S2 provides simple switching between two inputs. The inputs can be configured to switch automatically or be controlled through a Crestron control system. Inputs include:
Note: Audio breakaway capability enables the analog audio input to be used with either video input.A single fiber strand connects the DM-TX-201-S2 to a DM switcher or receiver, transporting video, audio, control, and networking signals all through one simple LC type optical connection. Used with a single DM 8G SM Fiber Receiver/Room Controller and optional Crestron control system, the DM-TX-201-S2 affords a simple solution for extending a computer or AV signal to a single display. As part of a larger system using a DM-MD series switcher, multiple DM-TX-201-S2s may be installed to enable the distribution of several sources at different locations to feed multiple displays throughout any room or larger facility.In addition to its DM 8G SM Fiber output, there is also an HDMI output provided to feed a local HDMI or DVI monitor, eliminating the need for an extra outboard distribution amp or other hardware.
USB Signal Extension
CEC Embedded Device Control
Compact and Versatile
A Digital Upgrade for Legacy Systems
|Connector Type:||HDMI In; RGB In; HDMI Out; Audio In|
|Amount Of Lan Ports||1|
|Product Weight (lbs.)||1.5200|
