Provides a versatile interface for HDMI®, DisplayPort, VGA, and analog video sources as part of a complete DigitalMedia™ System. Connects to the DM 8G® Fiber input of a DM® Switcher or Receiver via CresFiber® 8G. Includes a USB HID mouse/keyboard port and 10/100 Ethernet port.

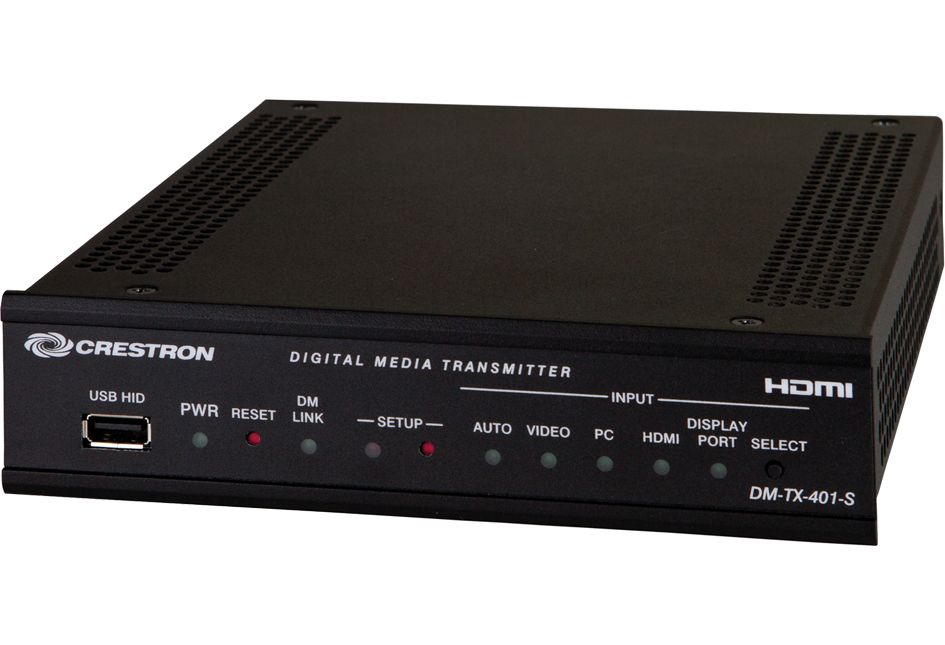

The DM-TX-401-S provides a versatile interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia™ system. It functions as a DM 8G® Fiber transmitter and switcher, providing DisplayPort, HDMI®, VGA, composite video, and analog audio inputs. It also functions as a control module, providing RS-232 and IR control ports, plus Ethernet and USB HID ports for a total connectivity solution. It can be rack-mounted, placed on a shelf, or attached under a table , and connects to the head end or display location using a single multimode fiber strand.
Installed in a stationary podium or equipment rack, the DM-TX-401-S offers an ideal solution for integrating rack-mounted sources, switchers, and AV receivers into the DigitalMedia system. Mounted under a table or in a movable lectern or AV cart, it affords a simple means for connecting mobile devices, computers, cameras, and other “BYOD” sources. In a conference center or auditorium, a portable DM-TX-401-S can be connected to the system through wall plates and floor boxes as needed, requiring just a single DM 8G Fiber jack (MP-WP187-S or MPI-WP187-S) at each location.
DigitalMedia 8G™ Fiber
Multimedia Computer/AV Interface
The DM-TX-401-S provides simple switching among four inputs. Inputs can be selected manually from the front panel, programmatically through a Crestron control system, or automatically by simply connecting a source to one of the inputs. Inputs include:
Note: Analog audio breakaway capability enables either of the two analog audio inputs to be used with any video input.
A single fiber strand connects the DM-TX-401-S to a DM switcher or receiver, transporting video, audio, control, and networking signals all through one simple SC type optical connection. Used with a single DM 8G Fiber Receiver/Room Controller and optional Crestron control system, the DM-TX-401-S affords a simple solution for extending a computer or AV signal to a single display. As part of a larger system using a DM-MD series switcher, multiple DM-TX-401-Ss may be deployed to enable the distribution of several sources at different locations to feed multiple displays throughout any room or larger facility.
Advanced Analog Video Processing
Embedded Device Control
USB Signal Extension
Under-Table or Rack-Mountable
|Connector Type:||VID In; PC; RCA Audio In; HDMI; DM Out|
|Amount Of Lan Ports||1|
|Product Weight (lbs.)||2.0000|
