Crestron® Cresnet® Hub-CNXHUB

Provides six isolated hub segments to facilitate the configuration of large Cresnet® networks.

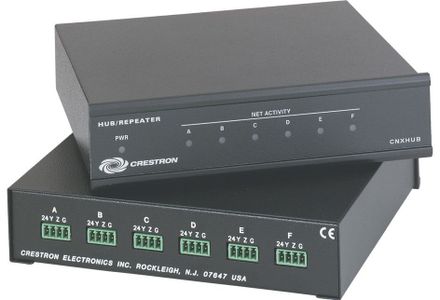

The CNXHUB is a six-segment Cresnet® hub designed to facilitate the configuration of large Cresnet networks. A Cresnet hub is ordinarily required for any Cresnet network that has more than 20 devices or 3000 feet (914 meters) of cable.

NOTE: For maximum Cresnet performance and reliability, use an Ethernet to Cresnet Bridge (DIN-CENCN-2 or DIN-CENCN-2-POE).

The Cresnet® Bus

• Cresnet is the communications backbone for many Crestron® keypads, lighting controls, shade motors, thermostats, occupancy sensors, and other devices that don’t require the higher speed of Ethernet. It provides a dependable and flexible wiring solution, allowing multiple devices to be wired together in parallel using both home-run and daisy-chain topologies. The Cresnet bus distributes bidirectional data communication and 24VDC power to each device over a single 4-conductor cable.


Six-Segment Cresnet Hub

• Without a Cresnet hub, the Cresnet bus supports a maximum of 20 devices and a maximum aggregate cable length of 3000 ft (914 m). Adding a Cresnet hub improves reliability for larger networks. A Cresnet hub divides the network into multiple isolated segments, each capable of supporting another 20 devices with 3000 ft (914 m) of additional cabling.

Under-Table or Rack-Mountable

• The CNXHUB is housed in a compact metal enclosure that can be placed on a shelf, attached under a table, or mounted in a 19” equipment rack. Its 1RU half-width form factor allows it to fit in a single rack-space alongside a second CNXHUB or other 1RU half-width Crestron device.

Key Features

• Enables the configuration of large Cresnet® networks
• Provides six isolated Cresnet segments
• Supports 20 Cresnet devices per segment
• Supports 3000 ft (914 m) aggregate cable length per segment
• No programming required
• Single-space, half-width 19-inch rack-mountable
• Under-table mountable
• Cresnet network powered
