Crestron® Cresnet® “High-Power” Teal Non-Plenum Control Cable-1000 Foot Spool-CRESNET-HP-NP-TL-SP1000

Model #: CRESNET-HP-NP-TL-SP1000
176603
Crestron
At a Glance

Crestron® Cresnet® “High-Power” Teal Non-Plenum Control Cable-1000 Foot Spool with bidirectional communication and extra-large conductors

Call for Best Price
$99,999.00Save

Get to know this product.

A version of Cresnet® cable with extra-large conductors for power and ground to support devices that draw a large amount of power over the Cresnet bus.

The Cresnet® bus is the communications backbone for many Crestron® keypads, lighting controllers, shade motors, sensors, and other devices. Cresnet is a simple, yet flexible 4-wire network that provides bidirectional communication and 24VDC power for Cresnet devices. Cresnet allows for both homerun and daisy-chain wiring topologies, with cable lengths up to approximately 3000 feet (915 meters) per run.

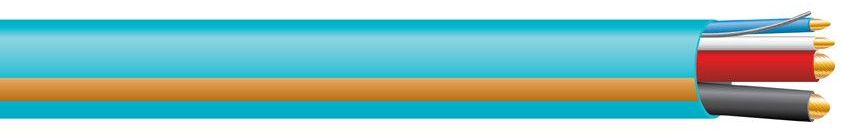

Cresnet "High-Power" control cable features extra-large conductors for power and ground to support devices that draw a large amount of power over the Cresnet bus. Within a single non-plenum PVC jacket, CRESNET-HP-NP contains (1) 12 AWG pair for 24VDC and Ground, and (1) 22 AWG shielded twisted pair for control data.
Useful Documents
Specifications

Specifications

Cord Length (Ft.):1000

Misc. Specs

ColorBlue-Green
WarningProposition 65 Warning for California Residents
