Classic Stereo and Video

Classic Stereo and Video

Crestron® COM Port Expander

Model #: PYNG-CONNECT-COM

At a Glance

Crestron® COM Port Expander with PYNG-HUB compatible and PoE technology

WarningProposition 65 Warning for California Residents
Crestron® COM Port Expander

Connections

Ethernet Port1
Connector TypeRJ45; 3.5mm; Mini-AB

General Specs

Depth (in.)2.86
Width (in.)5.04
Height (in.)1.35
Product Weight (lbs.)0.4

Crestron® COM Port Expander

Model #: PYNG-CONNECT-COM
166259
Model #: PYNG-CONNECT-COM
Crestron
$99,999.00

Call for Best Price

At a Glance

Crestron® COM Port Expander with PYNG-HUB compatible and PoE technology

Get to know this product.

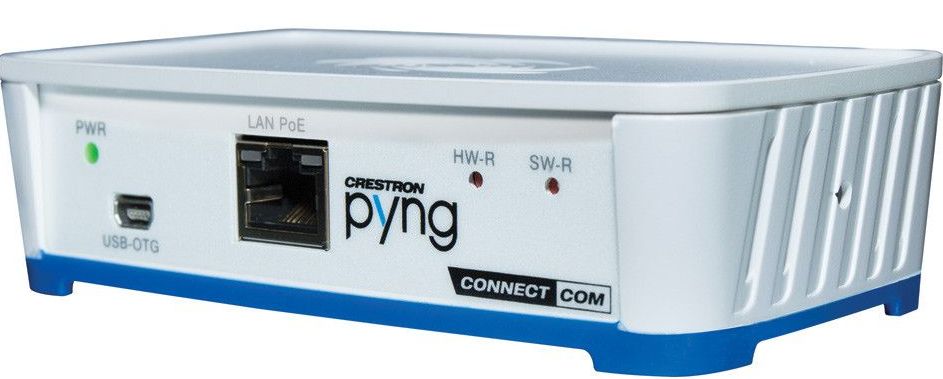

The PYNG-CONNECT-COM is a COM port expander that allows a PYNG-HUB to interface with a home’s security panel via RS-232. As a result, users can check the status of the security system and arm or disarm the system directly from the Pyng app.The PYNG-CONNECT-COM includes one RS-232 COM port for connecting to the security panel and one Ethernet with PoE port for connecting to the PYNG-HUB. Its tiny, Crestron® IFE micro form-factor allows the PYNG-CONNECT-COM to be placed just about anywhere, with the option to attach it to a flat surface or DIN rail using the mounting bracket provided.

Power over Ethernet (PoE)

    Using PoE technology, the PYNG-CONNECT-COM gets its operating power right through Ethernet wiring. PoE eliminates the need for a local power supply or any dedicated power wiring. Crestron offers the PWE-4803RU PoE Injector, which simply connects in line with the Ethernet cable. Crestron offers Ethernet switches with built-in PoE (models CEN-SW-POE-5 or CEN-SWPOE-16), affording a complete high-performance networking solution capable of powering multiple PoE powered devices.

Integrator Friendly Enclosure

    The PYNG-CONNECT-COM features the Crestron® IFE form factor, a compact "Integrator Friendly Enclosure” design that fits almost anywhere and enables a variety of installation options. Its shape allows multiple IFE compliant devices to be stacked together. Using the included mounting bracket, it can be fastened to any flat surface or snapped onto a standard DIN rail. A rack mount kit is also available.

Key Features

    COM Port Expander for PYNG-HUB

    Provides 1 RS-232 control port for bidirectional communication with a home’s security panel

    Allows users to check security system and arm or disarm the system from Crestron Pyng™ app

    Communicates with PYNG-HUB via Ethernet

    PoE network powered

    Available rack mount option

Specifications

General Specs

Depth (in.)2.86
Width (in.)5.04
Height (in.)1.35
Product Weight (lbs.)0.4

Connections

Ethernet Port:1
Connector Type:RJ45; 3.5mm; Mini-AB
