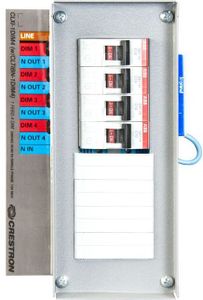

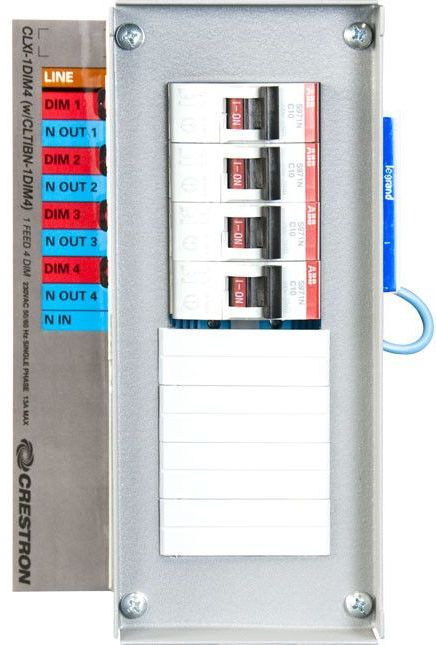

Crestron® Circuit Breaker Terminal Block-CLTIBN-1DIM4

The CLTIBN circuit breaker terminal blocks are designed to install in CAENIB automation enclosures to provide load-side circuit breakers and facilitate the termination of high-voltage wiring for each CLXI-Series lighting control module. The color-coded DIN rail design, complete with printed label strips and mounting hardware, provides for a clean and simple installation. Each CLTIBN model includes a front escutcheon panel and hinged door assembly and weighs approximately 1.82 kg (4.0 lb).

All models (except for the CLTIBN-BLANK) include Type C circuit breakers rated 10 Amps, 230 Volts with 10 kA breaking capacity. Individual circuit breakers may be replaced in the field using RCCBO type* where required. The CLTIBN-BLANK provides an assembly with no circuit breakers, allowing for the installation of branch circuit breakers* where required.

*RCCBO and branch circuit breakers provided by others.
