Crestron® CEN-SW-POE-5 5-Port PoE Switch-CEN-SW-POE-5

Model #: CEN-SW-POE-5
162195
Crestron
At a Glance

Crestron® CEN-SW-POE-5 5-Port PoE Switch with PoE on four ports and auto-negotiating

Call for Best Price
$99,999.00Save

Get to know this product.

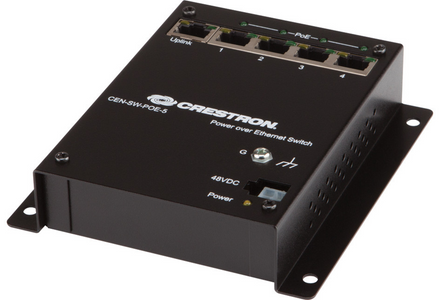

A surface-mountable 5-port Gigabit Ethernet switch with PoE on four ports.

The CEN-SW-POE-5 is a 5-port unmanaged Gigabit Ethernet switch that provides Power over Ethernet (PoE) from four of its ports. Power over Ethernet affords a one-wire solution for connecting Crestron touch screens, gateways, and other devices, delivering power and data over a single CAT5/6 network cable. All 5 ports are Gigabit capable to ensure maximum bandwidth for multimedia and critical control data.

Using the CEN-SW-POE-5, there is no need to install a separate power supply at each networked device location. The CEN-SW-POE-5 can simply be mounted at a convenient location on a wall or in an equipment rack, providing a single power source for four separate 802.3af compliant PoE powered devices. Non-PoE devices may also be connected to any port on the CEN-SW-POE-5 without risk of damage to either component.

Key Features

  • 5-port unmanaged Ethernet switch
  • All ports support 1000Base-T Gigabit Ethernet
  • Provides PoE (802.3af) on 4 ports
  • Auto-negotiating and auto MDI/MDIX
  • Rugged metal enclosure
  • Surface or rack-rail mountable
  • Ethernet
  • Ports: (5) 10Base-T/100Base-TX/1000Base-T Ethernet
  • Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, & 802.3af
  • Transmission Method: Store-and-Forward

Indicators

  • PoE 1 – 4: (4) green LEDs, indicate a PoE powered device is connected to each corresponding Ethernet port
  • Uplink: (1) green LED and (1) amber LED; indicate Ethernet link status, speed, and activity at the Uplink port
  • 1 – 4: (1) green LED and (1) amber LED per each of (4) Ethernet ports; indicate Ethernet link status, speed, and activity at each corresponding port
  • Power: (1) yellow LED, indicates operating power supplied via external power pack

Connectors

  • Uplink: (1) 8-wire RJ45, female;
  • 10Base-T/100Base-TX/1000Base-T Ethernet port
  • 1 – 4: (4) 8-wire RJ45, female;
  • 10Base-T/100Base-TX/1000Base-T Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs
  • G: (1) 6-32 screw, chassis ground lug
  • 48VDC: (1) 4-pin (2x2) rectangular connector;
  • 48 Volt DC power input (power pack included)

Power Requirements

  • Power Pack: 1.25 Amps @ 48 Volts DC;
  • 100-240 Volts AC 50/60 Hz power pack included

Environmental

  • Temperature: 32° to 104°F (0° to 40°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Heat Dissipation: 10 BTU/hour

Enclosure

  • Chassis: Metal, black finish, with (2) integral mounting flanges, vented top and bottom
  • Mounting: Freestanding, surface mount, or attach to a single rack rail
  • Dimensions
  • Height: 5.06 in (129 mm)
  • Width: 4.66 in (119 mm)
  • Depth: 1.17 in (30 mm)
  • Weight:13.5 oz (381 g)

Useful Documents
Specifications

Connections

Ethernet Port:5

Dimensions

Weight (grams):381

Other

Sold As:Each

Misc. Specs

Height (in.)5.06
Width (in.)4.66
Depth (in.)1.17
Product Weight1.0000
