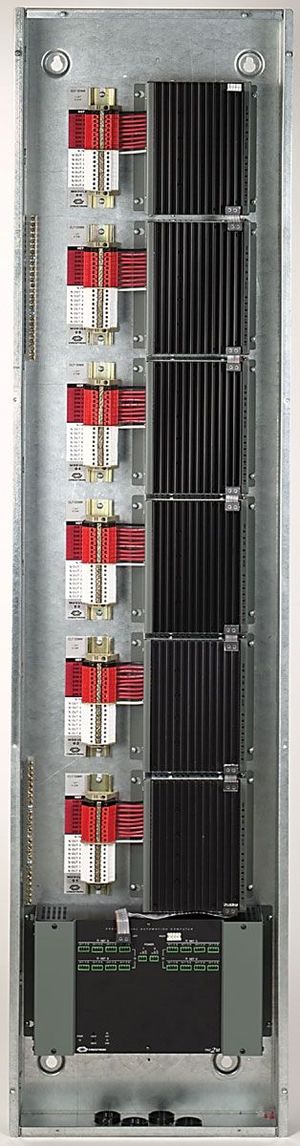

Crestron® Automation 7 Modules High Enclosure

At a Glance

Crestron® Automation 7 Modules High Enclosure for residential/commercial applications and CLX Series lighting control modules

Proposition 65 Warning for California Residents

Designed to house the Crestron® CLX Series lighting control modules, CLX-DIN-AP3 3-Series Control System®, or PAC2M control system. CAEN enclosures are available in an assortment of sizes, and are suitable for surface or flush wall-mount installation. Each model has been engineered to provide a clean and manageable installation and has abundant provisions for wire termination and electrical knockouts.

The CAEN Series automation enclosures are designed to house the Crestron® CLX Series lighting control modules, CLX-DIN-AP3 3-Series Control System®, or PAC2M control system. CAEN enclosures are available in an assortment of sizes, and are suitable for surface or flush wall-mount installation. Each model has been engineered to provide a clean and manageable installation and has abundant provisions for wire termination and electrical knockouts.CAEN automation enclosures are designed to use space efficiently, supporting over a hundred possible circuits in the largest model. Both centralized and distributed configurations are possible. A single PAC2M control system installed in a central enclosure can support numerous satellite extension enclosures distributed throughout a residence or commercial facility. Interconnection of the complete network of enclosures requires just one circulating Cresnet® cable. Dozens of keypads, touch screens, wall box dimmers, shade controllers, and other peripherals can also be terminated within an enclosure, with separate compartments provided for high- and low-voltage wiring.Crestron lighting and automation systems are completely convection cooled for silent and reliable operation. A vented front cover is included with every enclosure. All models are constructed of 16-gauge galvanized steel and are pre-drilled for mounting CLX-DIN-AP3 control systems, PAC2M control systems, CLX Series modules, CLT Series terminal blocks, power supplies, and CAEN-BLOCK terminal blocks. Additional non-CLX Series lighting modules and third-party contactors may be installed using Crestron's CAEN-UMP universal mounting plates. Grounding blocks and low-voltage partitions are included.CAEN enclosures are also well suited for all types of Class 2 and Class 3 applications including voice and data structured wiring, security, and RF signal distribution (as permitted by applicable codes).CAEN enclosures are UL and C-UL listed. If you require a complete UL Listed panel, Crestron offers this service through its UL Listed panel shop, providing complete in-factory system configuration and assembly.

Key Features

Enclosures for CLX Series lighting control modules, the CLX-DIN-AP3 3-Series Control System®, and the PAC2M automation control system

Available in six convenient sizes

Surface or flush wall-mountable

Built to enable over 100 dimmer-controlled circuits per enclosure

Support for centralized and distributed system configurations

Residential and commercial applications

Quiet and reliable, with efficient convection cooling

Galvanized steel backbox with grounding blocks, low- voltage partitions, and vented front cover

Additional mounting and termination accessories available

For 120 and 230 Volt systems

Additional uses for non-lighting applications such as voice and data structured wiring, security, and

RF signal distribution

UL Listed panel shop fabrication service available
