Model #: GL-CAEN-2DIMU8-277 KIT
At a Glance
Crestron® 8 Channel Universal Dimmer Module with terminal block and 2 feeds
Call for Best Price

Get to know this product.

Provides eight channels of technologically advanced universal dimming for commercial lighting applications. Supports LED, incandescent, magnetic low-voltage, electronic low-voltage, and 2-wire dimmable fluorescent lighting loads. Installs in a CAEN wall mount automation enclosure as part of a complete Crestron® centralized lighting control system.

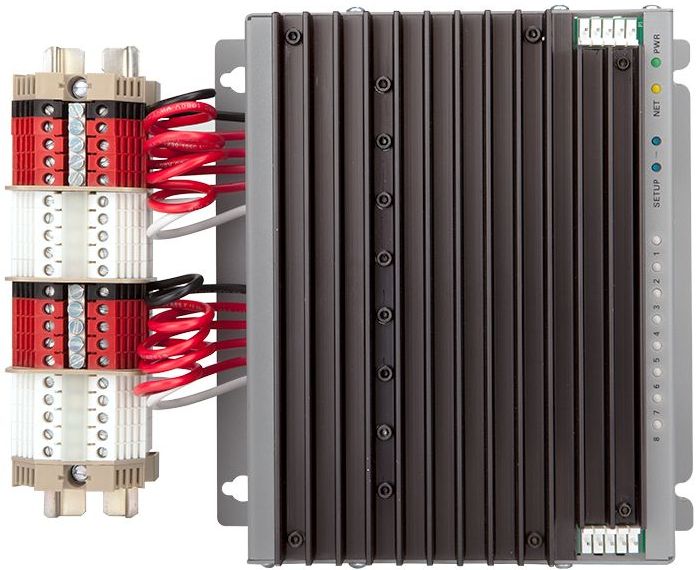

The Crestron® GL-CAEN-2DIMU8-277 is an eight-channel, two-feed universal dimmer module designed for 277V commercial lighting system applications. It installs in a CAEN enclosure and provides control of a wide range of dimmable lighting load types including electronic and magnetic low-voltage, LED, incandescent, and 2-wire fluorescent. It may also be used to switch non-dimmable lighting loads. Dual feed capability provides two independent four-channel dimmers in one module space. Each output channel is rated for 692 Watts (2.5 Amps), with a total module rating of 5540 Watts (20 Amps) when fed from two separate 15 or 20 Amp feeds.

Auto-Detecting Universal Dimming

  • Under normal operation, the GL-CAEN-2DIMU8-277 detects the connected load type on each channel and selects the appropriate operating mode for each channel automatically. Reverse phase (trailing edge) mode supports incandescent and electronic low-voltage load types, while forward phase (leading edge) mode handles magnetic low-voltage, neon, and other inductive load types. The operating mode may also be selected manually via software or programmatically via the control system.

Ultra-Reliable Performance

  • The GL-CAEN-2DIMU8-277 is a technologically advanced universal dimmer that delivers unparalleled reliability and optimal dimming performance, even in noisy electrical environments. Patented “Constant Power” technology dramatically reduces lamp flicker and maximizes stability under noisy power conditions. This cutting-edge technology quickly adjusts the dimmer’s on-time response to changes in input voltage so that power is constantly and consistently delivered to the load. Voltage sag and peak overshoot no longer cause changes in load output, ensuring reliable lighting performance and a comfortable working environment.
  • To further reduce lamp flicker, the GL-CAEN-2DIMU8-277 features proprietary zero-cross filter technology which compensates for line voltage and frequency fluctuations for superior immunity to noise on the power line. Built-in protection against over-current, over-voltage, and over-temperature conditions helps to prevent failure due to temporary wiring faults and other abnormalities. An air-gap relay on each channel output allows individual circuits to be serviced without disabling the entire module. Low-maintenance convection cooling with over-sized heatsinks affords silent operation with no mechanical components to wear out.

Emergency Lighting Control

  • The GL-CAEN-2DIMU8-277 is UL® 924 and CSA® C22.2 No. 141-15 listed for use in controlling emergency lighting loads. In the event of a power failure, a contact closure from a power loss sensor (Crestron GLS-PLS-120/277, sold separately) activates the override mode in the GL-CAEN-2DIMU8-277 to turn on each designated lighting load if it is off (assuming line power is supplied by a backup power source). The override dimming level can be preset to any value when commissioning the lighting system, so even if the load is already on prior to a power failure, it will change to the preset level when override mode is activated.

Centralized Lighting Cabinet Installation

  • Crestron GL-CAEN series commercial lighting control modules are designed to be installed in a CAEN wall mount enclosure. Available in a variety of sizes, CAEN enclosures provide a scalable, high-density centralized lighting control solution for any-sized commercial building or facility. A selection of GL-CAEN module types is offered to accommodate a wide range of load types and system configurations.
  • Each lighting control module, including the GL-CAEN-2DIMU8-277, ships complete with a DIN rail terminal block for termination of the high-voltage feed and load wiring. This terminal block mounts beside the module within the enclosure. Low-voltage control signals are bussed between each of the modules within an enclosure via a simple 5-wire link (interconnect jumpers included), which terminates to a single terminal block (model CAEN-BLOCK, sold separately) at the bottom of the enclosure.

Cresnet® Communications

  • The GL-CAEN-2DIMU8-277 interfaces with a Crestron control system (a.k.a., control processor or automation processor) via Cresnet. Cresnet is a simple 4-wire network bus that provides the communications backbone for a system of Crestron lighting dimmers, switches, keypads, shades, thermostats, and other devices.

Key Features

  • Eight-channel universal dimmer module for commercial lighting applications
  • Installs in a Crestron® CAEN enclosure
  • Supports dimmable LED, incandescent, electronic low-voltage, magnetic low-voltage, and 2-wire
  • fluorescent lighting loads
  • Single or dual feeds — two four-channel dimmers in one module
  • Rated 2.5 Amps per channel at 277 Volts AC
  • Auto load type detection
  • Forward and reverse phase modes
  • Customizable dimming curves via software
  • Patented Constant Power dimming technology
  • Zero-cross filter technology
  • Extreme stability under noisy power line conditions
  • Dramatically reduced lamp flicker
  • Over-current, over-voltage, and over-temperature protection
  • Built-in air gap relay per channel
  • Convection cooled for silent operation
  • Closure-activated override mode
  • UL® 924 and CSA® C22.2 No. 141-15 listed for emergency lighting control
  • Crestron system integration via Cresnet®
  • Includes terminal block for high-voltage wiring
  • CEC Title 24 2013 compliant
