Provides eight channels of dimming for 120 Volt residential and commercial lighting applications. Supports incandescent, magnetic low-voltage, neon/cold cathode, and 2-wire dimmable fluorescent lighting loads. Installs in a CAEN or CAEN-MLO wall mount automation enclosure as part of a complete Crestron® centralized lighting control system.

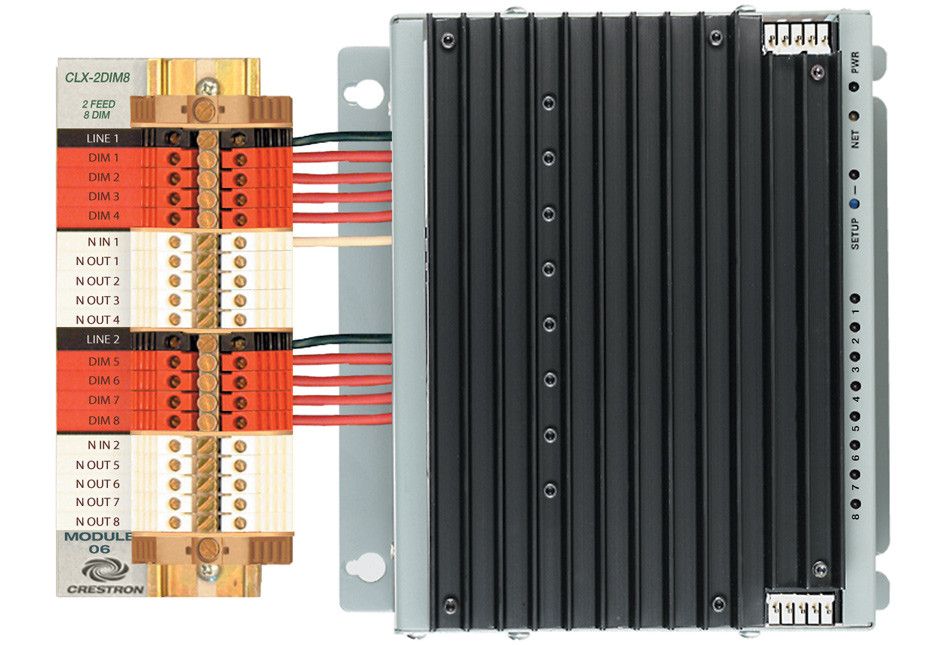

Photo shows module with terminal block on left. CLT-2DIM8 terminal block sold separately.
Visit the Crestron® Lighting Fixture Compatibility page to find out which Crestron lighting devices have been tested and are compatible with third party lighting fixtures.
The Crestron® CLX-2DIM8 is an eight-channel, two-feed dimmer module designed for 120V lighting system applications. It installs in a CAEN or CAEN-MLO enclosure and provides control of a variety of dimmable lighting load types including incandescent, magnetic low-voltage, neon/cold cathode, and 2-wire fluorescent. Dual feed capability provides two independent four-channel dimmers in one module space. Each output channel is rated for 1920 Watts (16 Amps), with a total module rating of 3840 Watts (32 Amps) when fed from two separate 20 Amp feeds.
Forward Phase Dimming
Centralized Lighting Cabinet Installation
Emergency Lighting Control
