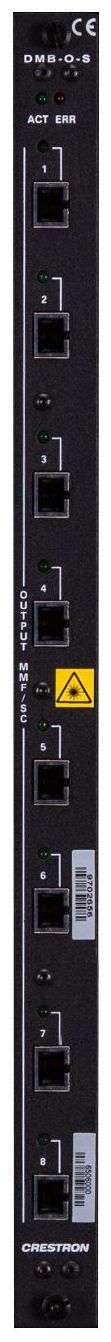

Crestron® 8-Channel DigitalMedia 8G™ Fiber Output Blade

At a Glance

Crestron® 8-Channel DigitalMedia 8G™ Fiber Output Blade for DM® switchers with modular output blade slots

Proposition 65 Warning for California Residents

Provides eight DM 8G® Fiber outputs for any DigitalMedia™ Switcher with modular output blade slots.

The DMB-O-S is an output blade designed for use with any blade-based Crestron® DigitalMedia™ Switcher. It provides eight independent DM 8G® Fiber outputs. Each DM 8G Fiber output enables connection to a DM 8G Fiber Receiver, or to the input of another DM® switcher. Just one multimode fiber optic strand is required per output, supporting distances up to 1000 feet (300 m) using CresFiber® 8G, or 500 feet (150 m) using other multimode fiber optic cable.Please refer to the DigitalMedia Resources Webpage at http://www.crestron.com/dmresources/ for additional design tools and reference documents.

Key Features

Modular output blade for a DM-MD64X64 or DM-MD128X128 switcher

Provides eight independent DM 8G® Fiber outputs

Supports cable lengths up to 1000 ft (300 m) using CresFiber® 8G, or 500 ft (150 m) using other multimode fiber

Handles video resolutions up to Full HD 1080p

Handles computer resolutions up to WUXGA

Handles 3D video and Deep Color

Handles Dolby® TrueHD, DTS-HD®, and uncompressed 7.1 linear PCM audio

HDCP compliant

Occupies a single output blade slot
