Crestron® 8 Channel 0-10V Dimmer Module

Model #: CLX-2DIMFLV8-277

At a Glance

Crestron® 8 Channel 0-10V Dimmer Module with emergency lighting control and built-in air gap relay

WarningProposition 65 Warning for California Residents
Crestron® 8 Channel 0-10V Dimmer Module

Construction

Mounting TypeSurface Mount

General Specs

Product Weight (lbs.)3.15
Width (in.)6.91
Depth (in.)3.32
Height (in.)7.53

Crestron® 8 Channel 0-10V Dimmer Module

Model #: CLX-2DIMFLV8-277
172411
Model #: CLX-2DIMFLV8-277
Crestron
$99,999.00

Call for Best Price

At a Glance

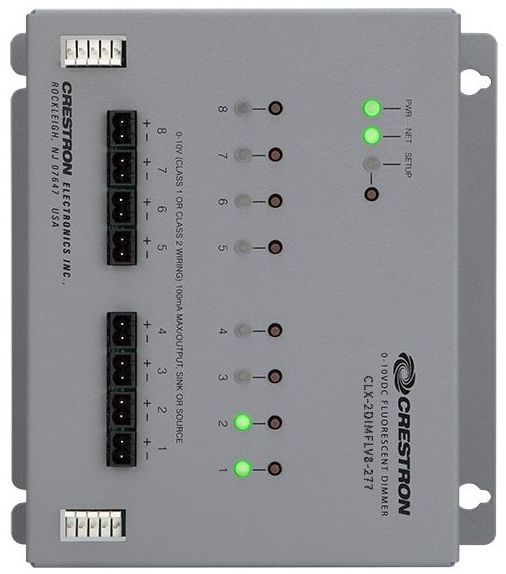

Crestron® 8 Channel 0-10V Dimmer Module with emergency lighting control and built-in air gap relay

Get to know this product.

Provides eight channels of dimming for 277 Volt commercial lighting applications. Supports 0-10 Volt dimmable fluorescent ballasts and LED drivers. May also be used to switch non-dimmable lighting loads. Installs in a CAEN wall mount automation enclosure as part of a complete Crestron® centralized lighting control system.

The Crestron® CLX-2DIMFLV8-277 is an eight-channel, two-feed dimmer module designed for 277V lighting system applications. It installs in a CAEN enclosure and provides control of 0-10 Volt dimmable fluorescent ballasts and LED drivers. It can also be used to switch non-dimmable lighting loads. Dual feed capability provides two independent four-channel dimmers in one module space. Each output channel is rated for 16 Amps, with a total module rating of 32 Amps when fed from two separate 20 Amp feeds.

Centralized Lighting Cabinet Installation

    Crestron CLX series lighting control modules are designed to be installed in a CAEN wall mount enclosure. Available in a variety of sizes, CAEN enclosures provide a scalable, high-density centralized lighting control solution for any-sized commercial facility. A selection of CLX module types is offered to accommodate a wide range of load types and system configurations.

    Termination of high-voltage wiring to the CLX-2DIMFLV8-277 module is facilitated using a CLT-2DIMFLV8-277 terminal block, which is sold separately to enable termination of the wiring prior to installing the module. This terminal block mounts beside the module within the enclosure. The 0-10V control wires terminate to the front of the module via detachable terminal blocks. Other low-voltage control signals are bussed between each of the modules within an enclosure via a simple 5-wire link (interconnect jumpers included), which terminates to a single terminal block (model CAEN-BLOCK, sold separately) at the bottom of the enclosure.

Cresnet® Communications

    The CLX-2DIMFLV8-277 interfaces with a Crestron control system (a.k.a., control processor or automation processor) via Cresnet. Cresnet is a simple 4-wire network bus that provides the communications backbone for a system of Crestron lighting dimmers, switches, keypads, shades, thermostats, and other devices.

Emergency Lighting Control

    The CLX-2DIMFLV8-277 is UL® 924 and CSA® C22.2 No. 141-15 listed for use in controlling emergency lighting loads. In the event of a power failure, a contact closure from a power loss sensor (Crestron GLS-PLS-120/277, sold separately) activates the override mode in the CLX-2DIMFLV8-277 to turn on each designated lighting load if it is off (assuming line power is supplied by a backup power source). The override dimming level can be preset to any value when commissioning the lighting system, so even if the load is already on prior to a power failure, it will change to the preset level when override mode is activated.

Key Features

    Eight-channel 0-10V dimmer module for commercial lighting applications

    Installs in a Crestron® CAEN enclosure

    Supports 0-10V dimmable fluorescent ballasts and LED drivers

    Also supports on/off switching of non-dimmable lighting loads

    Single or dual feeds — two four-channel dimmers in one module

    Rated 16 Amps per channel, 32 Amps total (using two 20 Amp feeds), at 277 Volts AC

    Customizable dimming curves via software

    Arcless switching

    Built-in air gap relay per channel

    Closure-activated override mode

    UL® 924 and CSA® C22.2 No. 141-15 listed for emergency lighting control

    Crestron system integration via Cresnet®

    Easy termination using a CLT-2DIMFLV8-277 terminal block (sold separately)

    CEC Title 24 2013 compliant

Visit the Crestron® Lighting Fixture Compatibility page to find out which Crestron lighting devices have been tested and are compatible with third party lighting fixtures.

Specifications

General Specs

Product Weight (lbs.)3.15
Width (in.)6.91
Depth (in.)3.32
Height (in.)7.53

Construction

Mounting Type:Surface Mount
WarningProposition 65 Warning for California Residents
