Provides eight channels of dimming for 120 Volt residential and commercial lighting applications. Supports 0-10 Volt dimmable fluorescent ballasts and LED drivers. May also be used to switch non-dimmable lighting loads. Installs in a CAEN or CAEN-MLO wall mount automation enclosure as part of a complete Crestron® centralized lighting control system.
Visit the Crestron® Lighting Fixture Compatibility page to find out which Crestron lighting devices have been tested and are compatible with third party lighting fixtures.
The Crestron® CLX-2DIMFLV8 is an eight-channel, two-feed dimmer module designed for 120V lighting system applications. It installs in a CAEN or CAEN-MLO enclosure and provides control of 0-10 Volt dimmable fluorescent ballasts and LED drivers. It can also be used to switch non-dimmable lighting loads. Dual feed capability provides two independent four-channel dimmers in one module space. Each output channel is rated for 16 Amps, with a total module rating of 32 Amps when fed from two separate 20 Amp feeds.

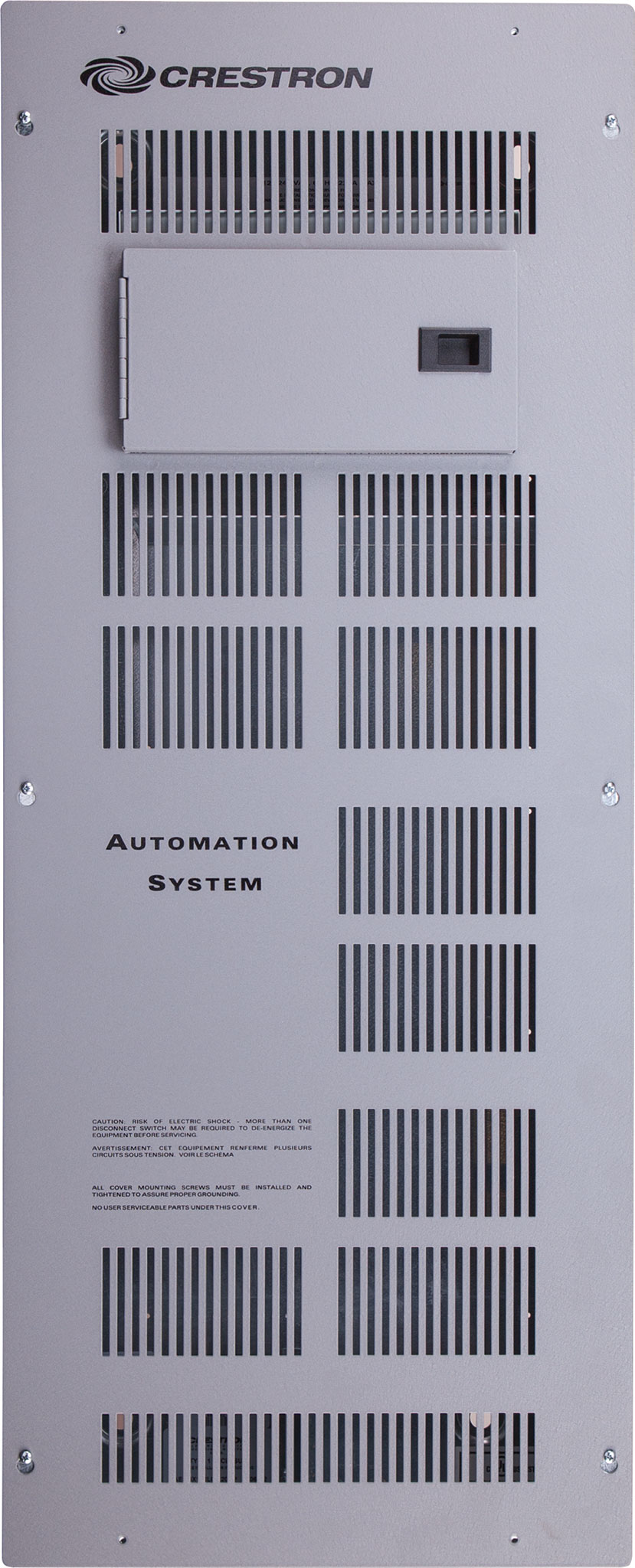

Centralized Lighting Cabinet Installation
Emergency Lighting Control
